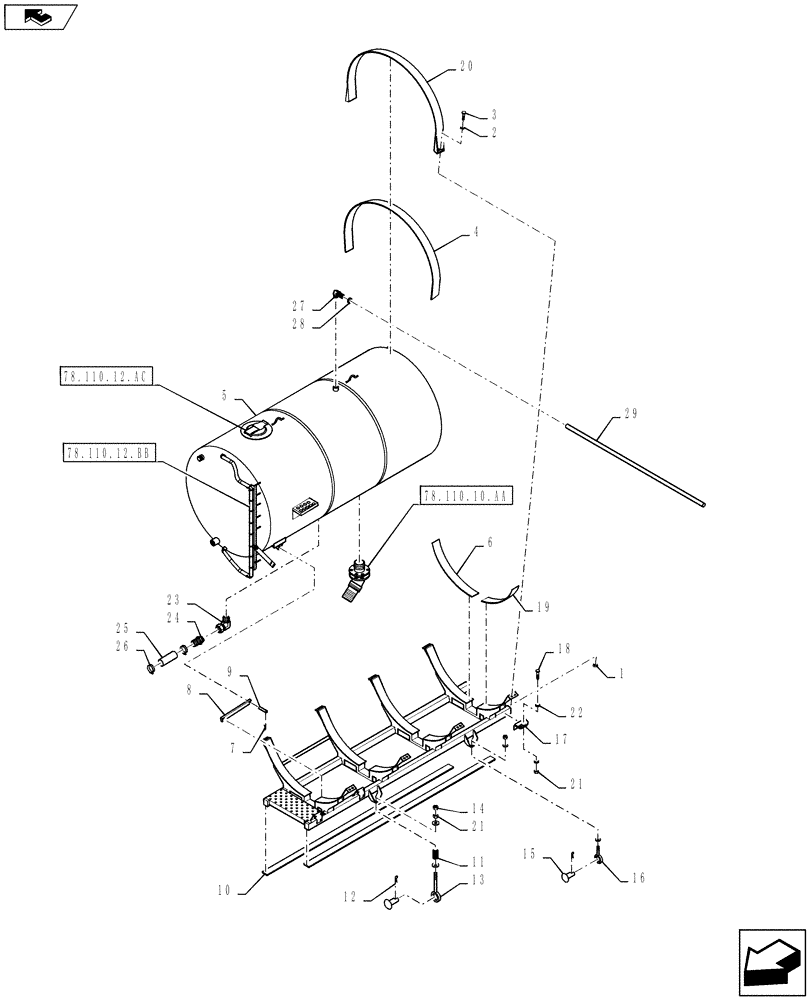

Запчасти Case IH 610 (78.110.12.AB) - 2000 GALLON TANK (78) - SPRAYING

1

832-44616

LOCK NUT

M16-2, TLN, CL10 DOR

16шт.

2

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm, HDN, DOR

32шт.

3

86980449

BOLT,Hex, M16 - 2 x 110mm, Cl 8.8, DOR

M16-2 X 110, HH, 8.8, DL

16шт.

4

BN0710056

RUBBER SEAL

Neoprene, 1/4", 60º Cut 5" Wide, 126.26" Long

4шт.

5

87265382

TANK

2000 Gallon

1шт.

6

BN313331

BAND

38.41"

4шт.

7

BN2391623

SPRING CLIP

Clip, 148 Dia. x 3 5/16"

2шт.

8

BN8193162

LINK

Connecting

1шт.

9

439-51644

HEADED PIN,1" x 2 3/4", G5

2шт.

10

342781A1

BOARD

Tank Mounting, 151" Long

2шт.

11

BN2397999

SPRING

2 X 1 ID MHP-85

2шт.

12

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

13

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

14

87310317

NUT

3/4-10, GR 8, DOR

8шт.

15

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

16

BN2390533

EYEBOLT

3/4 X 3"

2шт.

17

342376A1

SKID PLATE

2000 Gallon Tank, With Walkway

1шт.

18

86980468

BOLT,Hex, M20 x 180mm, Cl 8.8

M20 - 2.5 x 180, 8.8, DOR

4шт.

19

BN313332

BAND

32.09"

4шт.

20

BN312518

BAND

66" DIA.

4шт.

21

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

4шт.

22

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

14шт.

23

BN0502211

ELBOW

3" 90°, Pipe

1шт.

24

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

25

BN326025

HOSE,3.00" ID BULK

EPDM, Cut To Length of 6"

1шт.

26

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.

27

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

28

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

29

87267229

HOSE,2.17" ID x 100.00"

Bulk, Clear/White Suction, 9' is Required

1шт.
