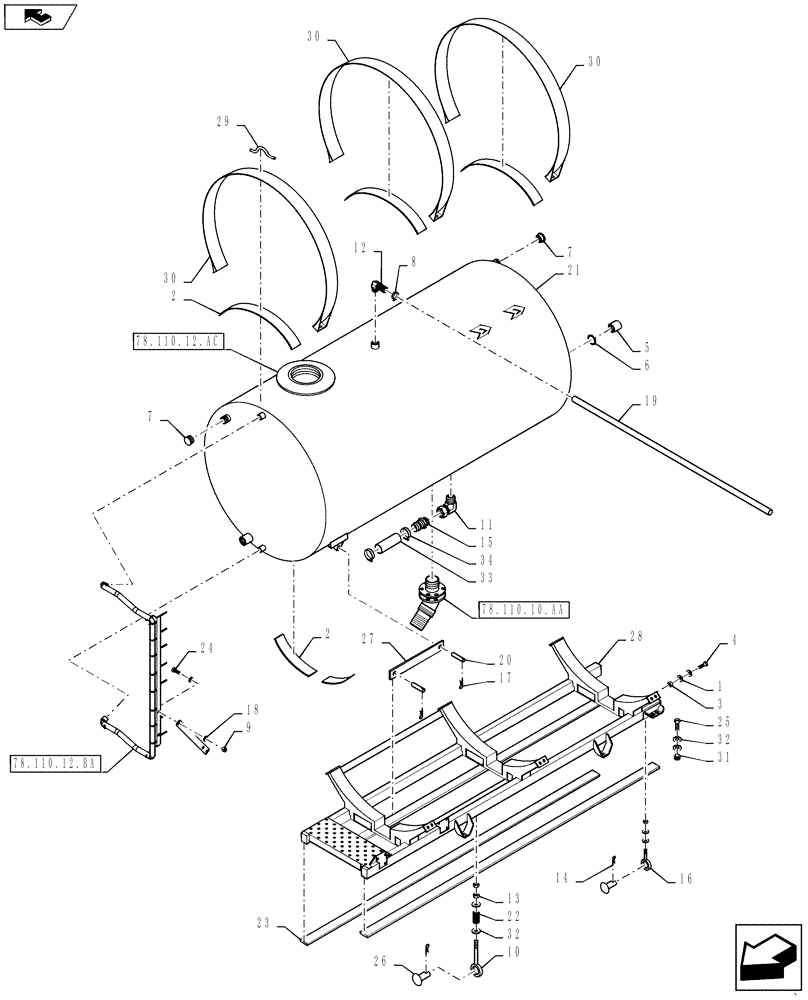

Запчасти Case IH 610 (78.110.12.AA) - 1800 GALLON TANK (78) - SPRAYING

1

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm, HDN, DOR

24шт.

2

BN0710056

RUBBER SEAL

Neoprene, 1/4", 60º Cut 5" Wide

46.84шт.

3

832-44616

LOCK NUT

M16-2, TLN, CL10 DOR

12шт.

4

86980450

BOLT,Hex, M16 - 2 x 120mm, Cl 8.8, DOR

M16 - 2 x 120, 8.8, DOR

12шт.

5

BN2293320

CAP

2" Poly

1шт.

6

87272500

GASKET

2" Sparge Tube

1шт.

7

87577690

CAP,1" Cap

1" NPT, Poly Pipe

2шт.

8

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

9

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

10

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

11

BN0502211

ELBOW

3" 90°, Pipe

1шт.

12

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

13

87310317

NUT

3/4-10, GR 8, DOR

8шт.

14

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

15

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

16

BN2390533

EYEBOLT

3/4 X 3"

2шт.

17

BN2391623

SPRING CLIP

Clip, 148 Dia. x 3 5/16"

2шт.

18

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

19

87267229

HOSE,2.17" ID x 100.00"

Bulk, Clear/White, Overflow, 9' is Required

1шт.

20

439-51644

HEADED PIN,1" x 2 3/4", G5

2шт.

21

87265381

TANK

1800 Gallon, Liquid

1шт.

22

BN2397999

SPRING

Compression, 2" X 1" ID

2шт.

23

342781A1

BOARD

Tank Mounting, 151" Long

2шт.

24

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

25

86980468

BOLT,Hex, M20 x 180mm, Cl 8.8

M20 - 2.5 x 180, 8.8, DOR

4шт.

26

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

27

BN8193162

LINK

Connecting

1шт.

28

342375A1

SKID PLATE

1800 Gallon Tank, With Walkway

1шт.

29

BN8193180

BAND

Front, Tank 64"

1шт.

30

BN321771

BAND

Middle and Rear, 64"

2шт.

31

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

4шт.

32

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

14шт.

33

BN326025

HOSE,3.00" ID BULK

EPDM, Cut To Lenght of 6"

1шт.

34

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.
