Запчасти Case IH 610 (06-002) - TANK GROUP, 2000 GALLON Tank

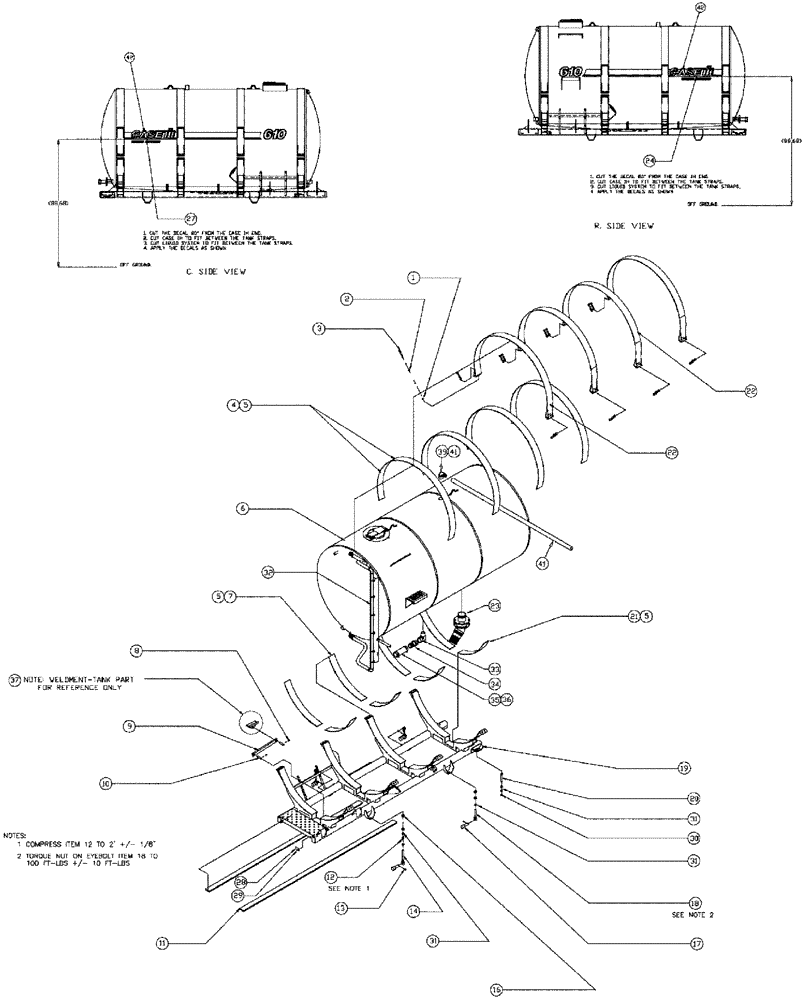

Схема запчастей Case IH 610 - (06-002) - TANK GROUP, 2000 GALLON Tank
29
32
22
5
20
11
42
37
19
16
9
18
3
10
1
42
21
23
13
24
22
34
35
2
7
17
6
8
31
12
30
41
33
31
27
39
14
31
28

Артикул

Название

Примечание

Количество

1

832-44616

LOCK NUT

M16-2, TLN, CL10 DOR

16шт.

2

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 MM HDN DOR

32шт.

3

86980449

BOLT,Hex, M16 - 2 x 110mm, Cl 8.8, DOR

M16-2 X 110, HH, 8.8, DL

16шт.

4

BN313330

126.26"

4шт.

5

BN2400107

CONTACT AD0011

1шт.

6

87265382

TANK

2000 Gallon, Liquid

1шт.

6a

87270464

CAP

16" With 10" Fill

1шт.

Service Parts for Ref. 6

1шт.

6b

BN2391314-001

GASKET

For 16" Cap

1шт.

Service Parts for Ref. 6

1шт.

6c

87272500

GASKET

2" sparge tube

1шт.

Service Parts for Ref. 6

1шт.

7

BN313331

BAND

38.41"

4шт.

8

BN2391623

SPRING CLIP

Clip, 148 Dia. x 3 5/16"

2шт.

9

BN8193162

LINK

CONNECTING

1шт.

10

BN2397664

PIN

CLEVIS 1"

2шт.

11

342781A1

BOARD

body mounting, 151 Long

2шт.

12

BN2397999

SPRING

2 X 1 ID MHP-85

2шт.

13

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

14

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

16

87310317

NUT

3/4-10, GR 8, DOR

8шт.

17

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

18

BN2390533

EYEBOLT

3013T69, 3/4 X 3"

2шт.

19

342376A1

SKID PLATE

2000 gallon tank, with walkway

1шт.

20

86980468

BOLT,Hex, M20 x 180mm, Cl 8.8

M20 - 2.5 x 180, 8.8, DOR

4шт.

21

BN313332

BAND

32.09"

4шт.

22

BN312518

BAND

66" DIA.

4шт.

23

BN8205163-B

SHUT-OFF VALVE

TANK SHUT-OFF VALVE ASSY

1шт.

See Fig. 01-005

1шт.

24

87638280

DECAL

LIQUID, 610, L.H.

1шт.

27

87638281

DECAL

LIQUID, 610, R.H.

1шт.

28

321-7089

PLATE

serial number, stainless

1шт.

29

301-1434

DRIVE SCREW,Drive, #6 x 1/4"

2шт.

30

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

4шт.

31

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

14шт.

32

NS

NOT SERVICED

Group, Sight Gauge, 2000 Gallon

1шт.

See Fig. 01-004

1шт.

33

BN0502211

ELBOW

PIPE STREET 3" 90

1шт.

34

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

35

BN326025

HOSE,3.00" ID BULK

S/D, EPDM

1шт.

Cut 6" from bulk roll

1шт.

35

87267505

3" X 6' S/D EPDM

1шт.

36

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.

37

BN8193144

LINK

for C tank

1шт.

38

87267869

BRACKET

RINSE TANK

4шт.

39

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

40

87267229

HOSE,2.17" ID x 100.00"

Clear/White Suction

9шт.

41

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

42

87556985

DECAL

CASE IH LOGO

2шт.

Выбрано товаров: 49
