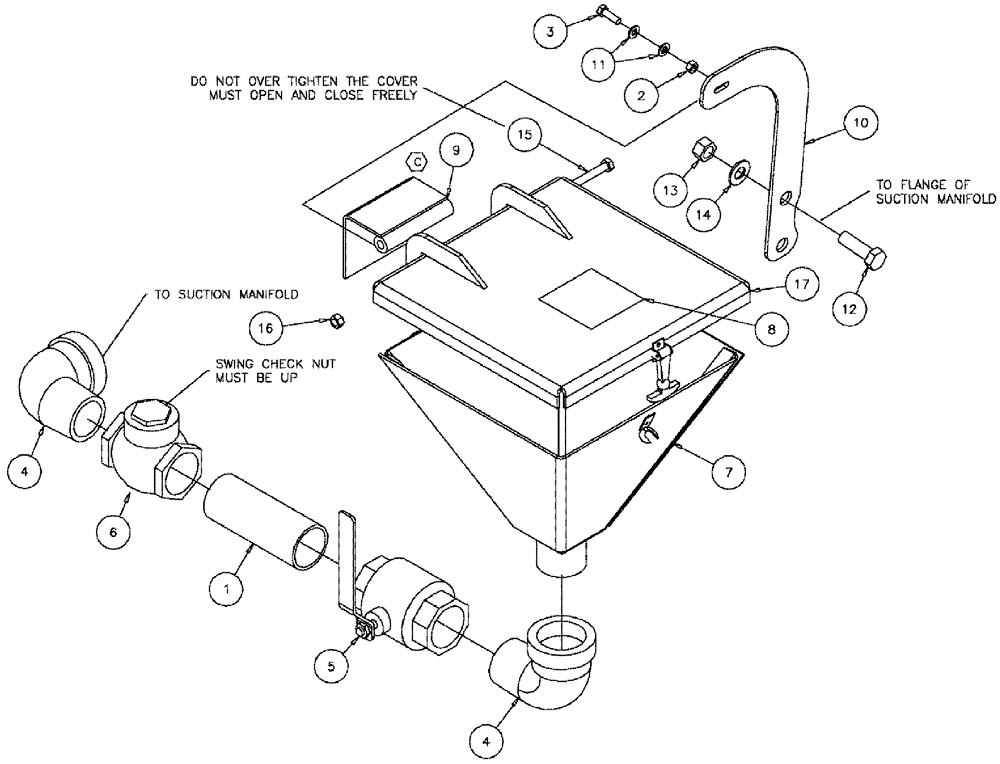

Запчасти Case IH 610 (05-052) - CHEMICAL EDUCTOR GROUP Liquid Plumbing

1

BN1420969

NIPPLE

2 x 6, SS 304

1шт.

2

86528579

NUT,M8 x 1.25

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

BN2296594

ELBOW

Street 2" 90º SS

2шт.

5

BN2395218

VALVE,2" SS Full Port Ball Valve

Ball 2" SS Fp

1шт.

6

BN2395250

CHECK VALVE

Swing, 2" SS

1шт.

7

87265394

HOPPER

Chemical, Years: -01-APR-09

1шт.

7

84175124

HOPPER

Chemical, Start Year: 01-APR-09

1шт.

7a

BN66815

LATCH

HOOD, SMALL

1шт.

Service Parts for Ref. 7

1шт.

8

333088A1

DECAL

protective clothing

1шт.

9

87266413

SUPPORT

Brace, Chemical Inductor

1шт.

10

BN325838

SUPPORT

1шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

13

832-46416

NUT,M16 x 2, Cl 8

2шт.

14

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

15

87021260

BOLT

3/8-16 X 7, HH, SS

1шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

17

87265395

COVER

CHEMICAL HOPPER

1шт.
