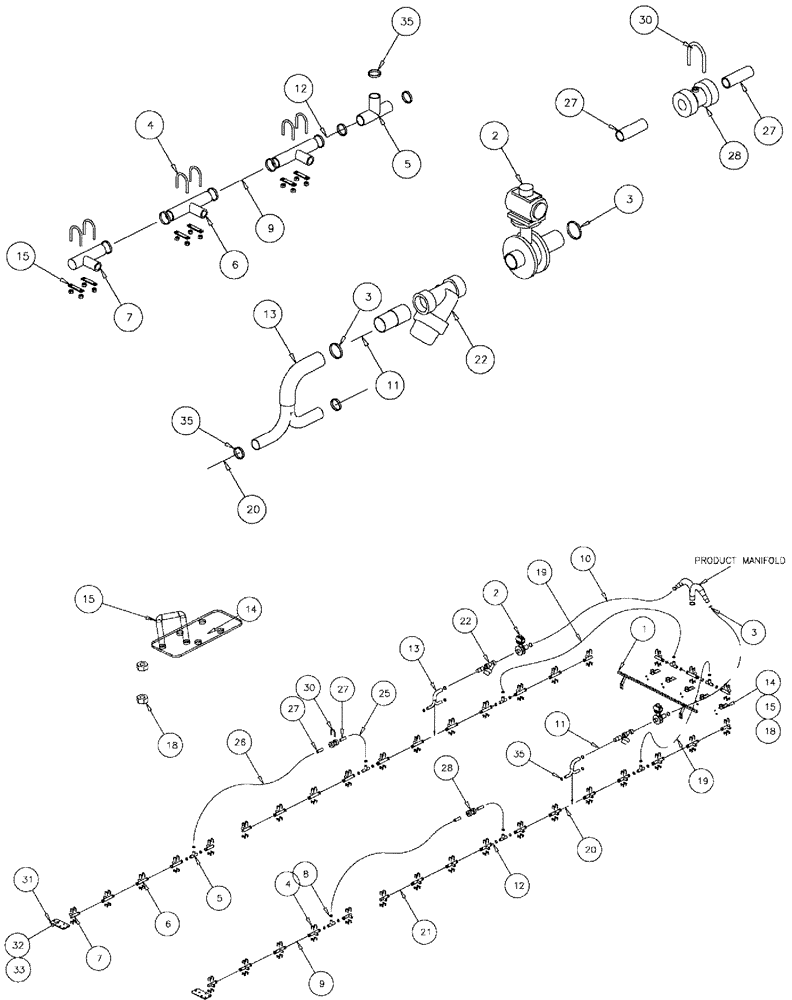

Запчасти Case IH 610 (05-050) - NOZZLE CIRCUIT, 60/85 BOOM, 3 SECTION, 30" SPACING Liquid Plumbing

1

BN319097

BAR

30" & 60"

1шт.

2

BN8195435

BOOM SPRAY VALVE SEE FIG. 03-059

2шт.

3

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

6шт.

4

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

70шт.

5

BN2402038

TEE

1 1/2 HB POLY

8шт.

6

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

25шт.

7

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

10шт.

8

BN76093

HOSE CLAMP

#28, SS, Start Serial: 6700

16шт.

8

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

91шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

9

87266754

HOSE

1-1/2" X 27.5" DOLPHIN

22шт.

10

BN322567

2" ID X 15' EPDM

2шт.

11

BN68378

HOSE,36.00"

EPDM

2шт.

12

87266737

HOSE

1 1/2" Bulk

10шт.

Cut 12.25" from bulk roll

1шт.

13

BN2405274

TUBE

BOOM MANIFOLD

2шт.

14

87269819

MOUNTING PLATE

Nozzle Liquid, Start Serial: 6700

5шт.

14

BN8191214

MOUNTING PLATE

NOZZLE

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

15

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep, Start Serial: 6700

5шт.

15

BN2403368

CLAMP

Nozzle AA111SQ-1

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

18

88902

NUT,3/8"-16

, Start Serial: 6700

10шт.

18

88902

NUT,3/8"-16

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

19

BN2390841-144.0

HOSE

CUT

2шт.

20

87266737

HOSE

1 1/2" Bulk

4шт.

Cut 10.5" from bulk roll

1шт.

21

87266737

HOSE

1 1/2" Bulk

2шт.

Upgrades The Old Mast Weldment 87270279 To The Current Mast Weldment 84158191.

1шт.

22

BN2407999

FILTER STRAINER,2" LSQ Strainer

IN-LINE 2" (CAM)

2шт.

24

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 13" from bulk roll

1шт.

25

BN2390841-042.0

CUT

2шт.

26

BN2390841-096.0

SPRAYER AG

2шт.

27

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

4шт.

28

BN2404501

NOZZLE

Stop, 1 1/4"

2шт.

30

BN2400371

CLAMP

MUFFLER 657-312

4шт.

31

87267136

BRACKET, SUPPORTING

Mount, Nozzle

14шт.

32

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

28шт.

33

BN55359

LOCK NUT,1/4"-20, SS

168шт.

34

87271147

CLAMP

nozzle

70шт.

35

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300, Start Serial: 6700

75шт.
