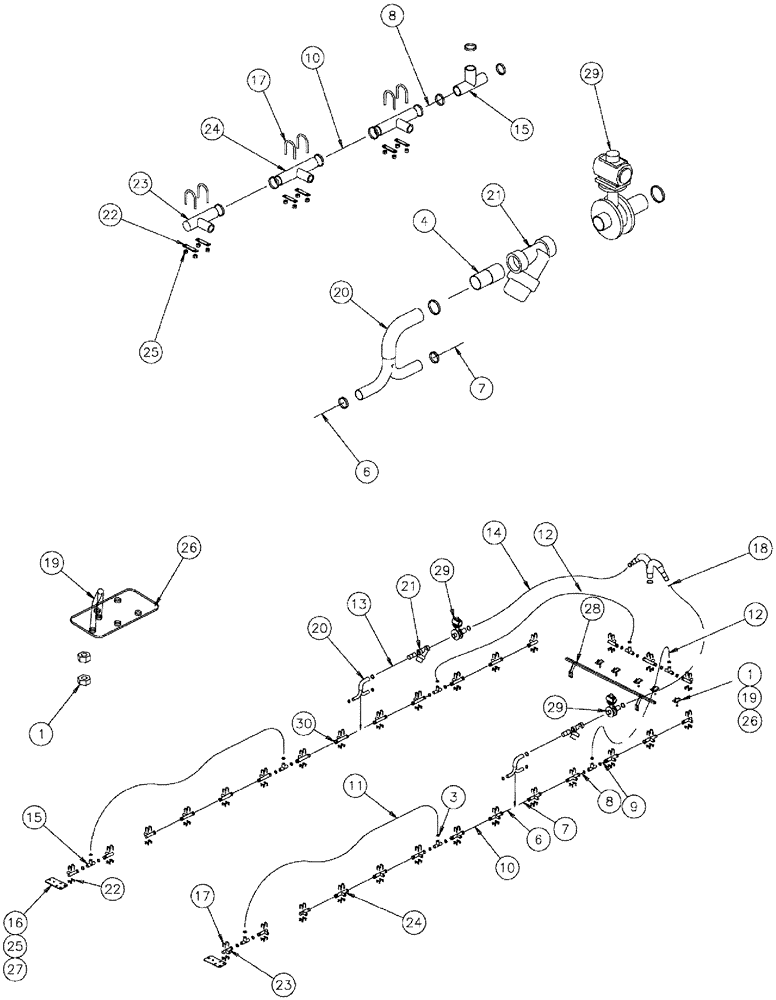

Запчасти Case IH 610 (05-048) - NOZZLE CIRCUIT, 70 BOOM, 3 SECTION, 30" SPACING Liquid Plumbing

1

88902

NUT,3/8"-16

, Start Serial: 6700

10шт.

26

88902

NUT,3/8"-16

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

3

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel, Start Serial: 6700

12шт.

26

BN76093

HOSE CLAMP

#28, SS

76шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

6

87266737

HOSE

1 1/2" Bulk

2шт.

Cut 10.5" from bulk roll

1шт.

7

87266766

HOSE

1-1/2" X 11.5" DOLPHIN

2шт.

8

87266767

HOSE

1-1/2" X 16" DOLPHIN

2шт.

9

87266768

HOSE

1-1/2" X 21.5" DOLPHIN

2шт.

10

87266754

HOSE

1-1/2" X 27.5" DOLPHIN

16шт.

11

BN2390841-078.0

HOSE

CUT

2шт.

12

BN2390841-180.0

HOSE

CUT

2шт.

13

BN2390844-034.5

HOSE

CUT

2шт.

14

BN2390844-180.0

HOSE

Cut

2шт.

15

BN2402038

TEE

1 1/2 HB POLY

8шт.

16

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

24шт.

17

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

58шт.

18

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

8шт.

19

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep, Start Serial: 6700

5шт.

26

BN2403368

CLAMP

Nozzle AA111SQ-1

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

20

BN2405274

TUBE

BOOM MANIFOLD

2шт.

21

BN2407999

FILTER STRAINER,2" LSQ Strainer

IN-LINE 2" (CAM)

2шт.

22

87271147

CLAMP

nozzle

58шт.

23

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly

10шт.

24

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

19шт.

25

BN55359

LOCK NUT,1/4"-20, SS

128шт.

26

87269819

MOUNTING PLATE

Nozzle Liquid, Start Serial: 6700

5шт.

26

BN8191214

MOUNTING PLATE

NOZZLE

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

27

87267136

BRACKET, SUPPORTING

Mount, Nozzle

6шт.

28

BN319097

BAR

30" & 60"

1шт.

29

BN8195435

BOOM SPRAY VALVE, SEE FIG. 03-009

2шт.

30

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300, Start Serial: 6700

64шт.
