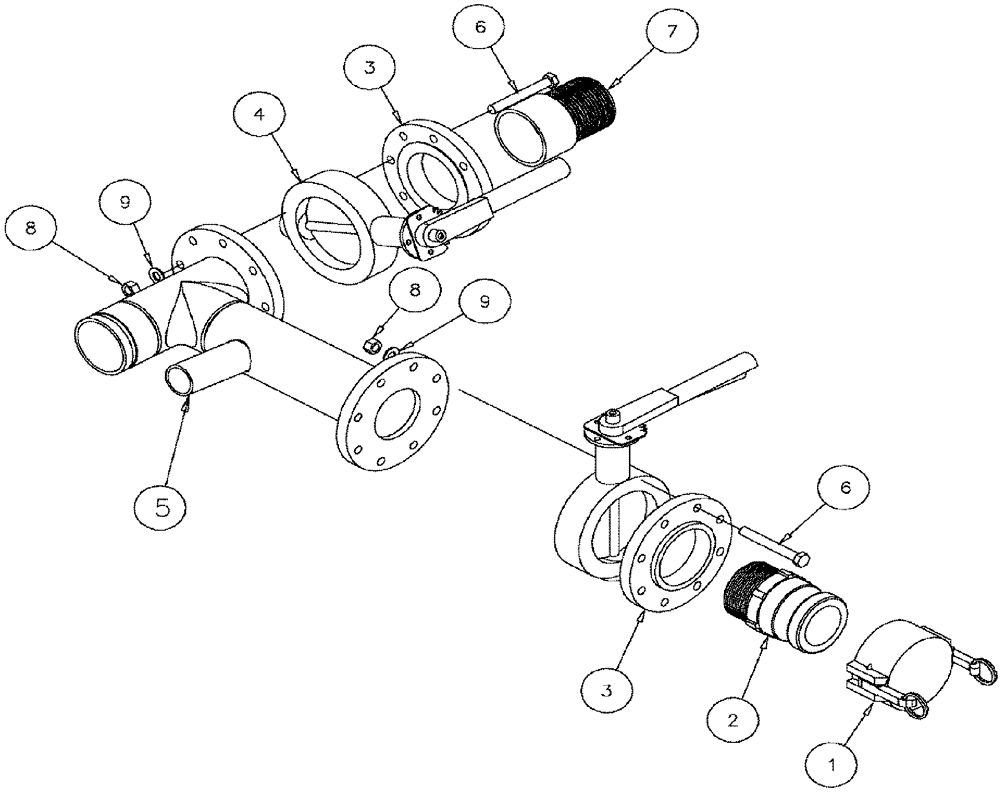

Запчасти Case IH 610 (05-042) - SUCTION MANIFOLD Liquid Plumbing

1

BN2393389

CAP

COUPLER 4" DUST POLY

1шт.

2

87656021

COUPLING

4"

1шт.

3

BN2390657

FLANGE

THREADED 4"-150

2шт.

4

BN2392209

VALVE

4" BRAY W/HANDLE

2шт.

5

87269805

MANIFOLD

SUCTION

1шт.

6

814-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

8шт.

7

BN2294422

LUBE NIPPLE

LUBRICATOR COMB KING 4"

1шт.

8

832-46416

NUT,M16 x 2, Cl 8

8шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
