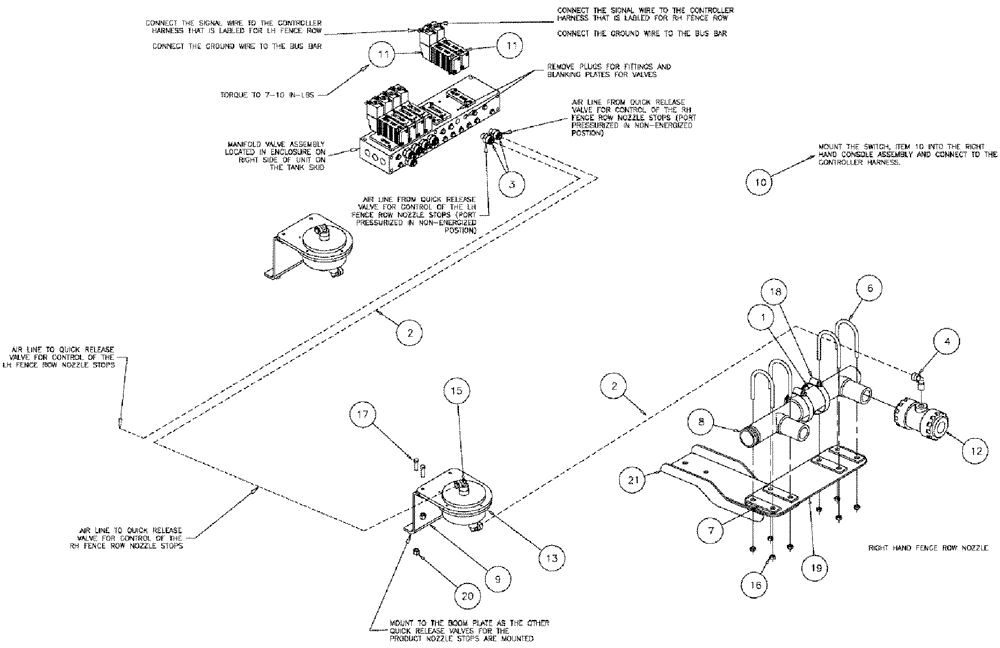

Запчасти Case IH 610 (05-039) - FENCE ROW L.H./R.H. GROUP, 1 1/2" Liquid Plumbing

1

BN53842

HOSE,38.10 mm ID Bulk

Discharge

1шт.

2

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

100шт.

3

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

6

BN2403315

U-BOLT

Round, 1/4"-20 x 1.93 x 2.31 SS

8шт.

7

87271147

CLAMP

nozzle

8шт.

8

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

2шт.

9

87270557

MOUNTING PLATE

Richway Valve, Boom, Start Serial: 6700

2шт.

10

BN321911

SWITCH

FENCE ROW, SEE FIG. 01-008

1шт.

11

BN325786

VALVE

Pneumatic, 4-Way, w/Solenoid

2шт.

11a

87269470

GASKET

Pneumatic Valve

2шт.

Associated Part of Valve, Pneu, 4-way, W/solenoid, P/N BN325786

1шт.

12

342271A1

RESTRICTOR VALVE,1" x 3/4" Poly Pinch Valve

poly pinch 1" x .75"

2шт.

13

BN2395255

SHUT-OFF VALVE

QUICK RELEASE, POLY, Start Serial: 6700

2шт.

13

342977A1

VALVE

QUICK RELEASE, POLY

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

15

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

16

BN55359

LOCK NUT,1/4"-20, SS

16шт.

17

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

8шт.

18

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

4шт.

19

BN8191723

SHEET

FENCE ROW NOZZLE MOUNT

2шт.

20

353308

NUT,M6 x 1.0, Cl 8

8шт.

21

87267118

MOUNTING PLATE

FENCE ROW

2шт.
