(05-028) - WASH DOWN PLUMBING, INTERNAL

Запчасти Case IH 610 (05-028) - WASH DOWN PLUMBING, INTERNAL Liquid Plumbing

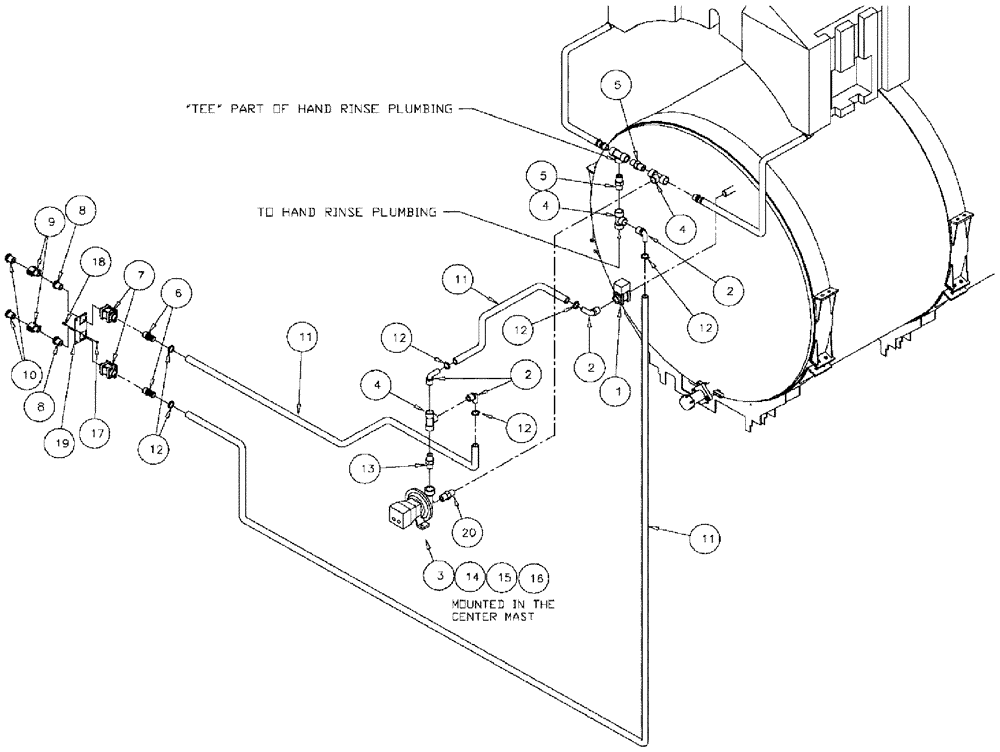

Схема запчастей Case IH 610 - (05-028) - WASH DOWN PLUMBING, INTERNAL Liquid Plumbing
4
12
12
12
3
11
20
9
8
6
14
2
7
2
5
2
16
4
4
5
17
18
8
12
11
19
11
10
13
12
1
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87389559

VALVE

Electric, 1" Ball

1шт.

See Fig. 05-029

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

3

87393970

PUMP

Hypro With HM4 Motor

1шт.

See Fig. 04-014

1шт.

4

BN73629

TEE

1" Poly Pipe

3шт.

5

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN2395215

HYDRAULIC VALVE

Ball 1" Poly

2шт.

8

BN53665

BUSHING

1" x .75 Poly

2шт.

9

BN2393335

COUPLING

B 3/4" POLY

2шт.

10

BN2403684

FITTING,3/4" Adapter x 3/4" Garden Hose Female Thread

GARDEN HOSE

2шт.

11

BN2393068

TUBE

1" Suction Style K

22шт.

12

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

13

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

14

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

88902

NUT,3/8"-16

2шт.

17

BN55359

LOCK NUT,1/4"-20, SS

3шт.

18

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

3шт.

19

BN8195371

SHEET

WASHDOWN VALVE MNT

1шт.

20

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

1шт.
