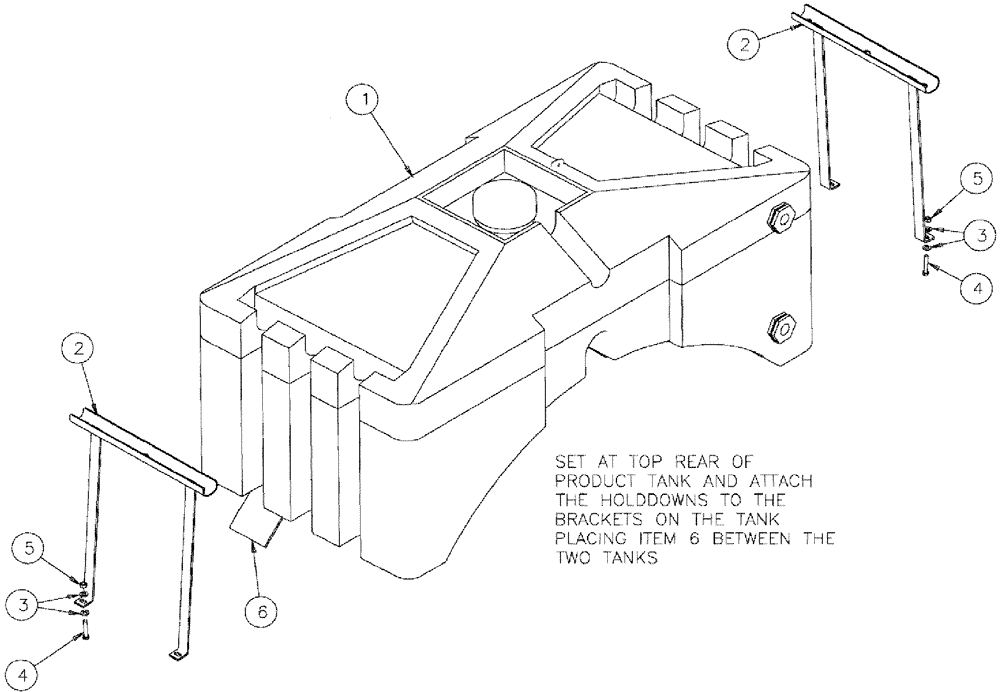

Запчасти Case IH 610 (05-027) - WASH DOWN TANK MOUNTING Liquid Plumbing

1

87270629

TANK

SADDLE, 135 GAL

1шт.

1a

BN2403685

BULKHEAD

Fitting, 1" MNPT

4шт.

Parts of Tank, Saddle, 135 Gal, P/N 87270629

1шт.

1b

BN314276

COVER

6.00, W/BREATHER

1шт.

Parts of Tank, Saddle, 135 Gal, P/N 87270629

1шт.

1c

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

1шт.

Parts of Tank, Saddle, 135 Gal, P/N 87270629

1шт.

2

86986738

HOLDER

Holddown, 135 Gallon Tank

2шт.

3

BN50146

WASHER,3/8", Stainless

8шт.

4

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8-16 X 2-1/2", Stainless Steel

4шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

6

BN0710056

RUBBER SEAL

Neoprene, 1/4", 60º Cut 5" Wide

12.5шт.
