(05-026) - WASH DOWN TANK PLUMBING

Запчасти Case IH 610 (05-026) - WASH DOWN TANK PLUMBING Liquid Plumbing

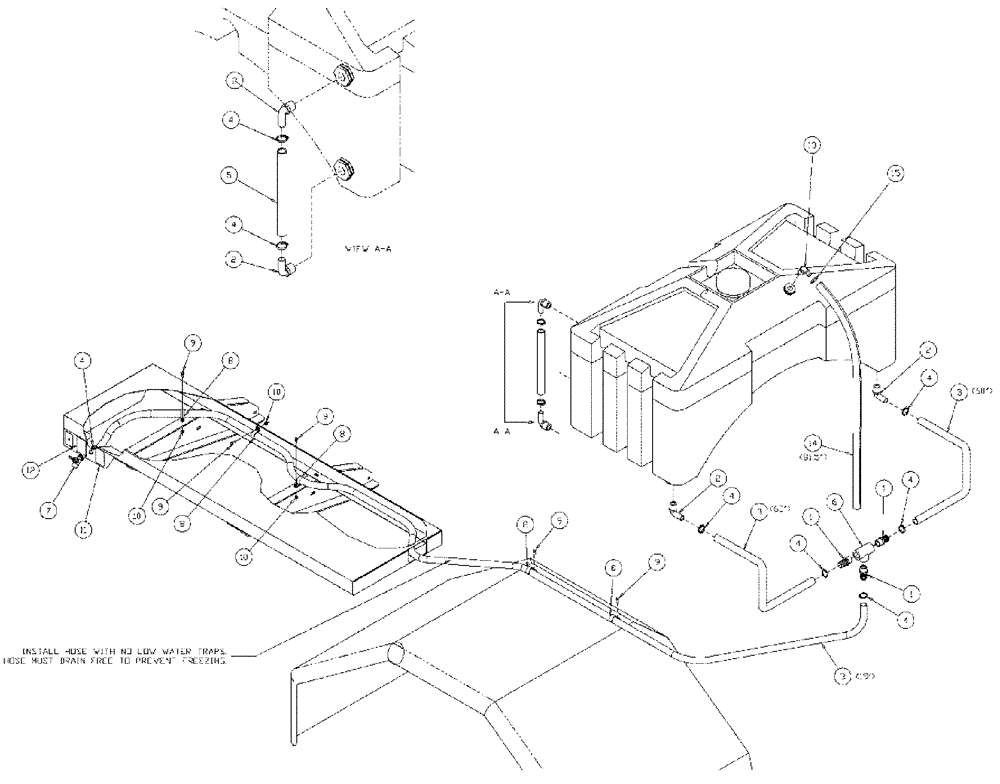

Схема запчастей Case IH 610 - (05-026) - WASH DOWN TANK PLUMBING Liquid Plumbing
2
8
9
20
15
8
4
12
1
9
14
9
10
6
7
10
2
8
4
4
8
4
9
5
1
8
9
10
10
4
9
3
4
6
2
1
4
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

3

BN2393068

TUBE

1" Suction Style K

29шт.

4

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

5

BN54256

HOSE

1.0" ID x 1/8" Wall Clear Vinyl

1шт.

Cut 12" from bulk roll

1шт.

6

BN73629

TEE

1" Poly Pipe

1шт.

7

BN53817

DRAIN VALVE

BALL, .50 MP .50 MGH, BLUE

1шт.

8

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

5шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

10

86528579

NUT,M8 x 1.25

5шт.

11

BN323729

DECAL

Hand Wash

1шт.

12

87271146

DECAL

DO NOT DRINK

1шт.

13

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°, PP

1шт.

14

BN320451

HOSE,0.75" ID x 81.50"

1шт.

15

BN310446

HOSE CLAMP

#12, Stainless Steel

1шт.
