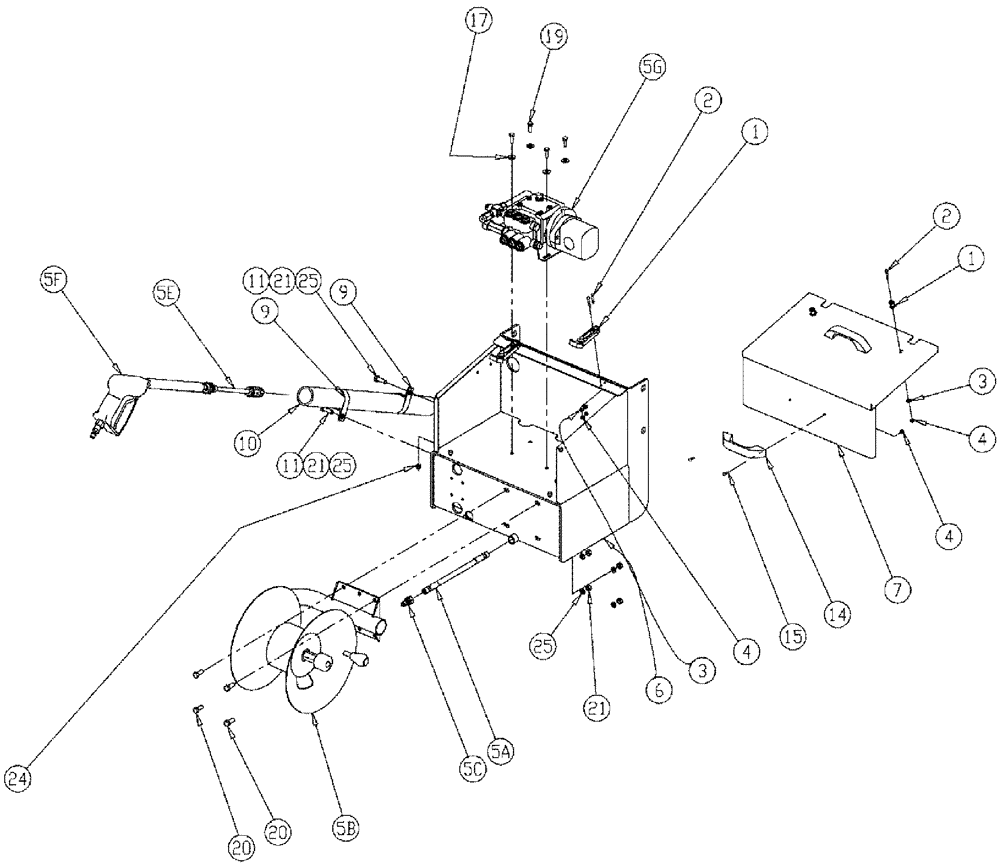

Запчасти Case IH 610 (05-019) - PRESSURE WASHER STATION GROUP Liquid Plumbing

1

BN309337

LATCH

Flexible Draw

2шт.

2

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

6шт.

3

BN310265

WASHER

10, Stainless Steel

6шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

5

BN311492

WASHER

Pressure, 3 GPM 2000 PSI

1шт.

5a

BN311612

HOSE,12.00"

1шт.

5b

87272646

HOSE REEL

Pressure Washer

1шт.

See Fig. 05-020

1шт.

5b

BN317212

HOSE

REEL (COMPLETE), PRESS. WASHER

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

5b

NSS

NOT SOLD SEPARAT

HOSE, HOSE REEL

1шт.

See Fig. 05-021

1шт.

5c

NSS

NOT SOLD SEPARAT

SOCKET, QUICK DISCONNECT

1шт.

See Fig. 05-021

1шт.

5e

NSS

NOT SOLD SEPARAT

LANCE & NOZZLE, SPRAY GUN

1шт.

See Fig. 05-021

1шт.

5f

NSS

NOT SOLD SEPARAT

TRIGGER GUN, PRESS. WASHER

1шт.

See Fig. 05-021

1шт.

5g

BN322326

WATER PUMP

P. WASHER

1шт.

See Fig. 05-022

1шт.

6

BN322548

BOX

PRESSURE WASH

1шт.

7

BN311521

COVER

PRESSURE WASHER

1шт.

9

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

2шт.

10

86986621

PIPE

2" PVC x 26.5" Grey

1шт.

11

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

14

BN311626

HANDLE

Molded Grab, Black

2шт.

15

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

17

BN50142

WASHER,5/16", Stainless Steel

4шт.

19

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

20

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

24

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

25

BN50146

WASHER,3/8", Stainless

6шт.
