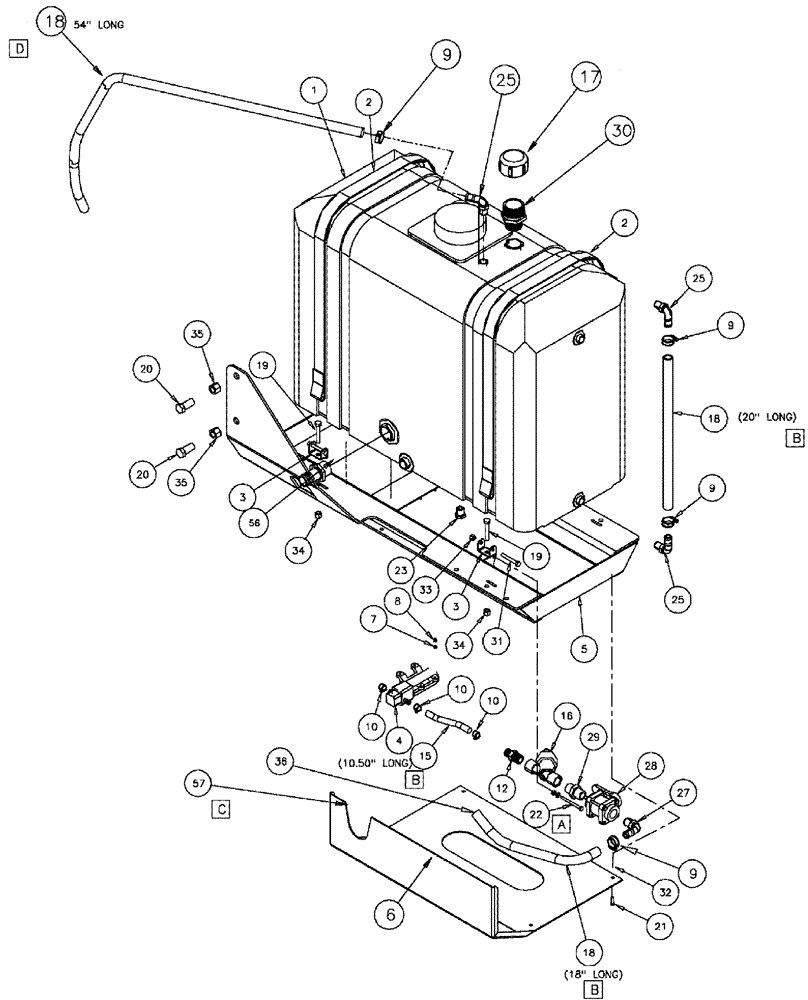

Запчасти Case IH 610 (05-012) - FOAM TANK GROUP - BEFORE SERIAL #20114 Liquid Plumbing

1

BN323080

TANK

70 GAL.POLY

1шт.

2

87268267

STRAP

38 mm x 1570 mm, Flateye

2шт.

1b

BN314276

COVER

6.00, W/BREATHER

1шт.

3

BN324375

BRACKET

FOAM TANK STRAP

4шт.

4

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

5

342381A1

FRAME

FOAM TANK

1шт.

6

87271098

PROTECTION PLATE

PUMP/VALVE

1шт.

7

BN310265

WASHER

10, Stainless Steel

4шт.

8

BN303136

NUT

10-32, NLN, G5

4шт.

9

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

10

BN310450

HOSE CLAMP

#3, Stainless Steel

3шт.

12

343436A1

PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb

3/4" MPT X 3/8" Hose Barb, Poly

1шт.

16

BN324892

FILTER STRAINER,3/4" x 3/4" Y Strainer

3/4" "Y" 40 Mesh

1шт.

17

BN2293320

CAP

2" Poly

1шт.

18

BN52310

TUBE,0.75" ID

Wall Vinyl

8шт.

19

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

4шт.

20

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

22

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

23

BN73502

PLUG

1/2" PIPE POLY

1шт.

25

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

3шт.

27

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

28

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

29

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

30

BN73780

NIPPLE

2" x 1.5 Red Poly, Start Serial: 6700

1шт.

30

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

31

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

32

353308

NUT,M6 x 1.0, Cl 8

4шт.

33

86528579

NUT,M8 x 1.25

4шт.

34

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

35

280375

NUT,3/4"-10, GC

4шт.

36

87271283

GROUP, SEE FIG. 05-013

1шт.

56

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2", Start Serial: 6700

1шт.

57

BN303902

SOFT TRIM

9 3/4", Start Serial: 6700

1шт.
