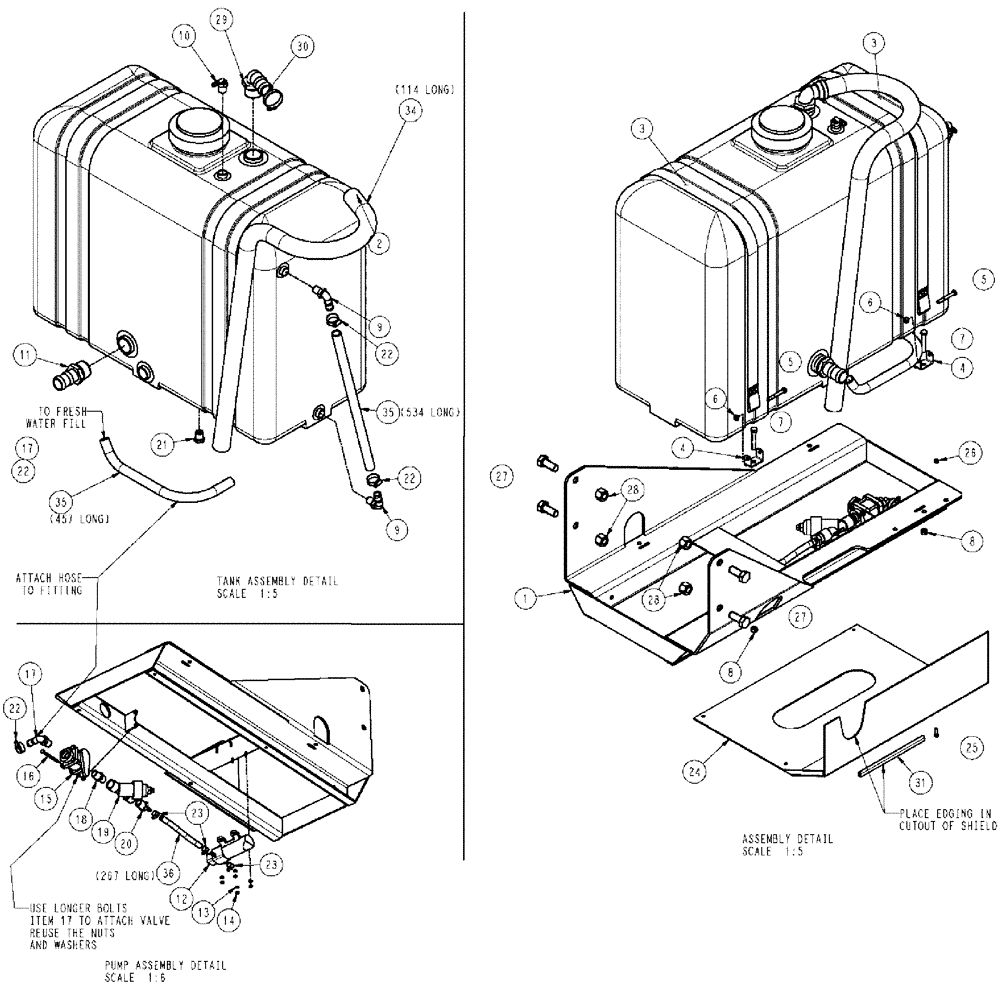

Запчасти Case IH 610 (05-011) - FOAM TANK GROUP - SERIAL #20114 AND LATER Liquid Plumbing
№
Артикул
Название
Примечание
Количество
1
342381A1
FRAME
FOAM TANK
1шт.
2
BN323080
TANK
70 GAL. POLY
1шт.
3
87268267
STRAP
38 mm x 1570 mm, Flateye
2шт.
4
BN324375
BRACKET
FOAM TANK STRAP
4шт.
5
86980386
BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR
4шт.
6
9991588
NUT,M8 x 1.25, Cl 8
4шт.
7
87342143
BOLT,M10 x 60, 8.8, DOR
4шт.
8
86980515
NUT,Hex, M10 x 1.5, Cl 8.8, DOR
4шт.
9
BN73519
ELBOW
1/2" NPT x 3/4" Hose Barb
2шт.
10
BN325981
ELBOW
1/2" MPT x 3/8" Hose Barb, Poly
1шт.
12
BN73562
FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb
3/4" NPT x 3/4" Hose Barb, 90°, PP
1шт.
13
87727677
PUMP,12V
Diaphragm, 1 GPM, 12V, Foam Transfer
1шт.
14
BN310265
WASHER
10, Stainless Steel
4шт.
15
BN303136
NUT
10-32, NLN, G5
4шт.
16
BN73564
VALVE
3/4" Ball Poly 2 Way, Full, PP
1шт.
17
BN67050
BOLT,1/4"-20 X 3.00", Stainless Steel
2шт.
18
BN73565
NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly
3/4" Short Pipe, Poly
1шт.
19
BN324892
FILTER STRAINER,3/4" x 3/4" Y Strainer
3/4" "Y" 40 Mesh, PP
1шт.
20
343436A1
PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb
3/4" MPT X 3/8" Hose Barb, Poly
1шт.
21
BN73502
PLUG
.50MP, PP
1шт.
22
BN310446
HOSE CLAMP
#12, Stainless Steel
3шт.
23
BN310450
HOSE CLAMP
#3, Stainless Steel
3шт.
24
87271098
PROTECTION PLATE
PUMP/VALVE
1шт.
26
353308
NUT,M6 x 1.0, Cl 8
4шт.
27
87342861
BOLT
3/4-10 X 1-3/4 5
4шт.
28
87310323
NUT,3/4"-10, GR B, DOR
4шт.
29
BN73723
ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly
1-1/2" NPT x 1-1/2" Hose Barb, Poly
1шт.
30
BN310448
HOSE CLAMP
#28, Stainless Steel
1шт.
31
BN303902
SOFT TRIM
9 3/4"
1шт.
34
BN309785
HOSE
Kanaflex 390SD, 1 1/2" x 13.8'
4.5шт.
35
BN52310
TUBE,0.75" ID
Wall Vinyl
3.25шт.
36
BN75913
TUBE
3/8 EVA
1шт.
Выбрано товаров: 35
