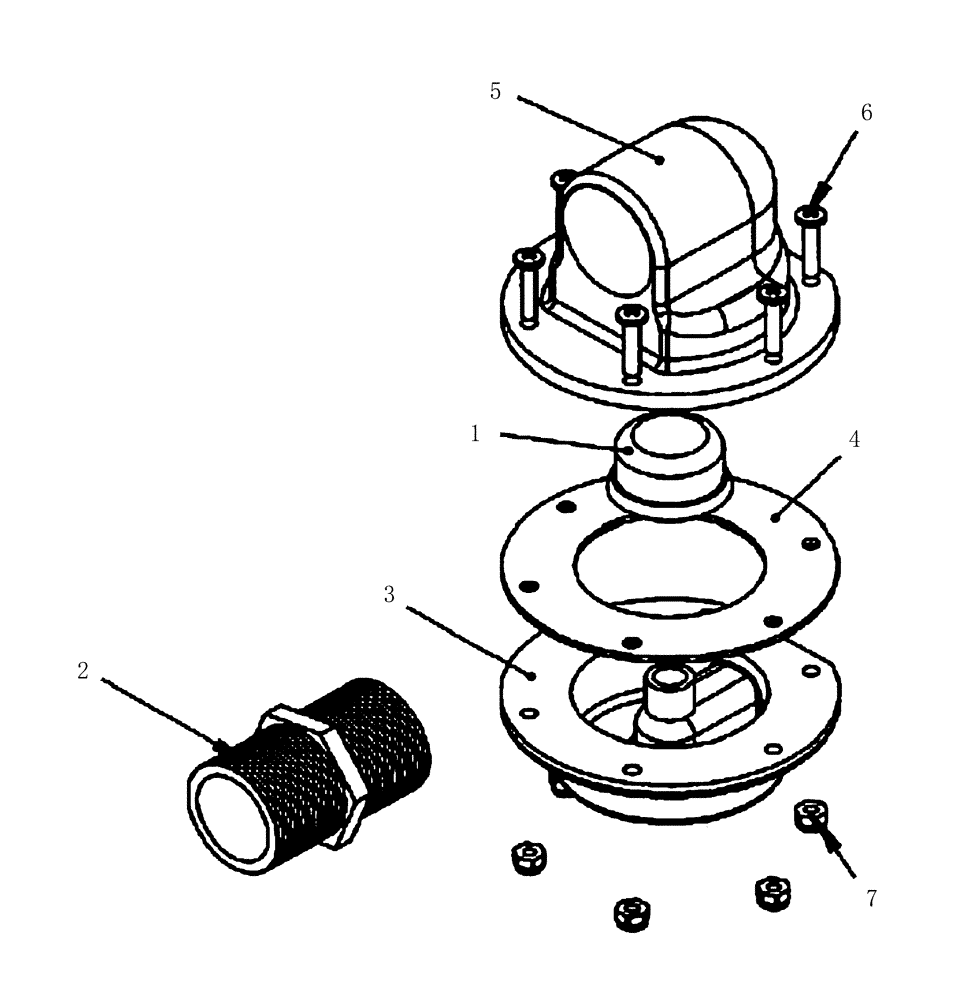

Запчасти Case IH 610 (05-009[02]) - FOAM MARKER CHAMBER ASSEMBLY Liquid Plumbing

0

BN307636

CHAMBER

Foam Mixing

1шт.

1

21965

SCREEN

foamhead - 3/8"

1шт.

2

BN313211

NIPPLE

Hex, 1-1/4"

1шт.

3

21964

HOUSING

foamhead - base

1шт.

4

21966

GASKET

foamhead

1шт.

5

21967

HOUSING

foamhead - top

1шт.

6

NSS

NOT SOLD SEPARAT

10-24 x 7/8" SS Screw

6шт.

7

NSS

NOT SOLD SEPARAT

10-24 SS Nyloc Nut

6шт.
