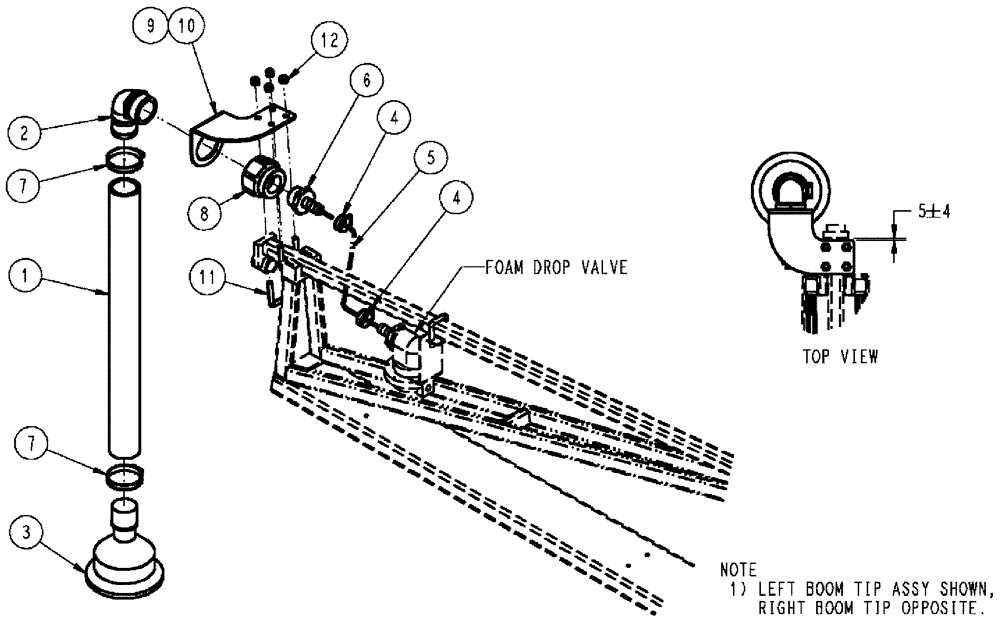

Запчасти Case IH 610 (05-007) - FOAM DROP 70 BOOM Liquid Plumbing

1

87268528

HOSE,2.00" ID x 26.00"

Foam Drop

2шт.

2

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

3

BN2403252

BELL

Foam Marker

2шт.

4

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

5

BN52310

TUBE,0.75" ID

Wall Vinyl

2шт.

6

BN319562

FITTING

1.25MP.75HB, PP

2шт.

7

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

8

87272450

REDUCER,2" x 1-1/4" Poly Reducing Coupling

2.0 FP x 1.25 FP, Poly

2шт.

9

87272447

BRACKET

FOAM MKR, R.H.

1шт.

10

87272448

BRACKET

Foam Marker Drop, LH

1шт.

11

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.
