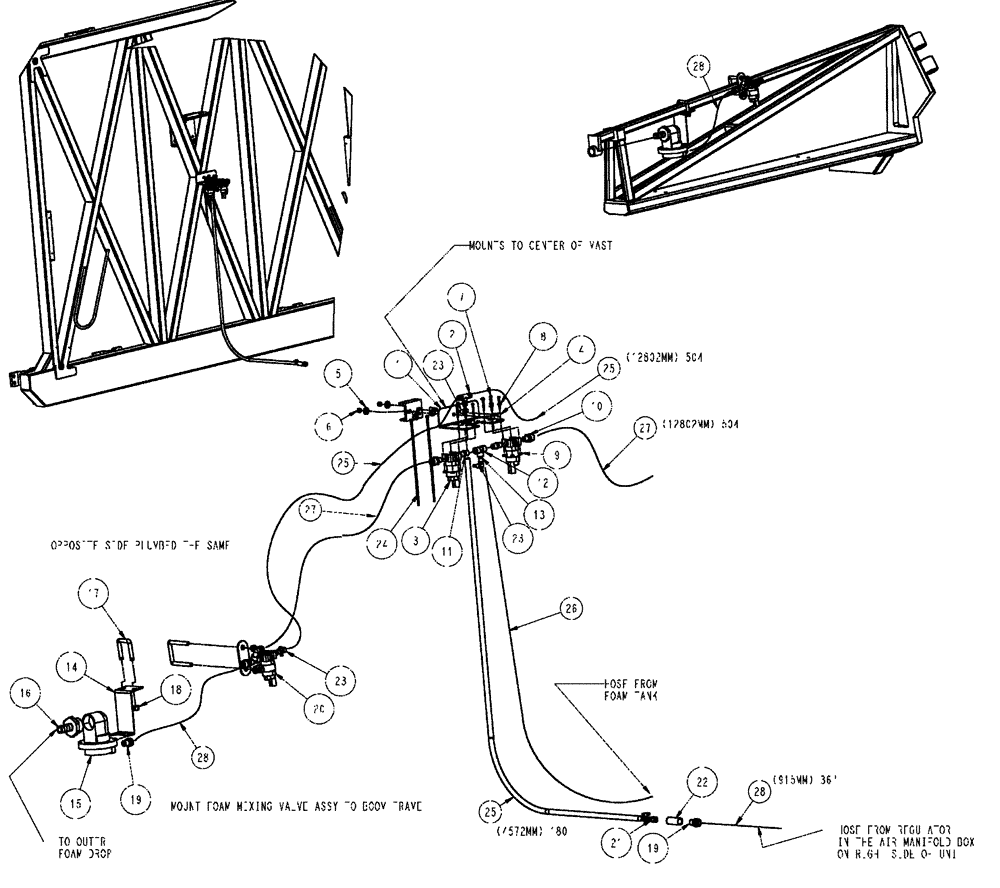

Запчасти Case IH 610 (05-006) - FOAM DELIVERY, 70 BOOM Liquid Plumbing

1

87266013

PLATE

Solenoid Valve Mount

1шт.

2

BN324009

TEE

.50HB, PP

1шт.

3

BN307938

VALVE

SOLENOID, 1/4 NPT

4шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

5

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

6

353308

NUT,M6 x 1.0, Cl 8

2шт.

7

BN317051

BOLT

6-32 X 1.25"

8шт.

8

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156 x 0.375 x 0.049 CST DOR

4шт.

9

BN317053

LOCK NUT

6-32 nylon lock

8шт.

10

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

11

86986808

NIPPLE

1/4" Short, Poly

2шт.

12

86986807

TEE

1/4" Poly

1шт.

13

86986810

FITTING

Hosebarb, 3/8" X 1/4" NPT

1шт.

14

343091A1

BRACKET, SUPPORTING

mount, foam mix valve, 70'

2шт.

15

BN307636

CHAMBER

Foam Mixing

2шт.

16

BN319562

FITTING

1.25MP.75HB, PP

2шт.

17

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

18

87343970

NUT,3/8"-16, G8, DOR

4шт.

19

BN2399412

ADAPTER

Tube MC38038

1шт.

20

87666448

VENTURI

Solenoid Assembly, LH

2шт.

21

BN323125

FITTING

.38MP.50HB, PP

1шт.

22

343552A1

COUPLING,3/8" Poly Pipe Coupling

3/8" poly

1шт.

24

BN309265

CABLE

TIE

2шт.

25

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

1шт.

26

BN75913

TUBE

3/8 EVA

1шт.

27

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

28

BN2292088

AIR INTAKE TUBE

3/8" Black

2шт.

Cut 15" from bulk roll

1шт.
