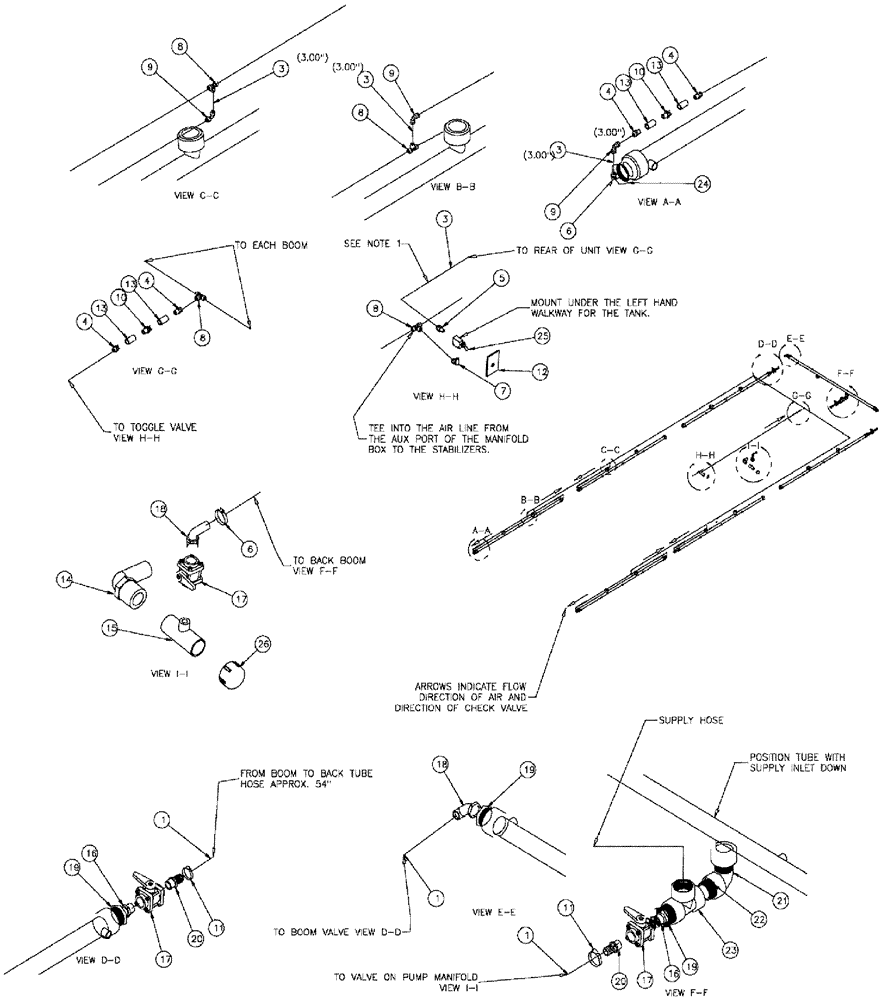

Запчасти Case IH 610 (05-005) - WET BOOM RECOVERY 2" Liquid Plumbing

1

342228A1

HOSE,31.8mm ID x 30480mm L

BULK, 1-1/4" SUCTION

29шт.

2

BN2290335

LOOM

Split 1/4" id #1783

40шт.

3

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

130шт.

4

BN2399401

ADAPTER

Male, 1/4" Tube

14шт.

5

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

6

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

7

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

8

BN2399408

UNION TEE

Tube UTC140

6шт.

9

BN2399409

90 ELBOW

Tube ULC140

10шт.

10

BN307985

VALVE

CHECK,1-2.5 CRK, 1/4 P

7шт.

11

BN310446

HOSE CLAMP

#12, Stainless Steel

6шт.

12

BN313943

DECAL

NOZZLE RECOVERY SYSTEM

1шт.

13

BN73015

COUPLING

1/4" NPT SS Full

14шт.

14

BN73789

FITTING

2" 90 DEGREE POLY

1шт.

15

BN8195384

LUBE NIPPLE

LUBRICATOR MOD NIPPLE 2"

1шт.

16

BN73648

NIPPLE

1" Short Poly Pipe

4шт.

17

BN73605

HYDRAULIC VALVE

1" BALL POLY

4шт.

18

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

3шт.

19

BN307007

REDUCER

Bushing, 2" x 1"

5шт.

20

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

3шт.

21

BN73785

ELBOW

90-STREET 2" POLY

1шт.

22

BN73783

NIPPLE

2" NPT Short Poly

1шт.

23

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

24

86986974

PLUG

MODIFIED POLY 2"

6шт.

25

BN2402091

VALVE

AIR TOGGLE 3-WAY

1шт.

26

BN2293320

CAP

2" Poly

1шт.
