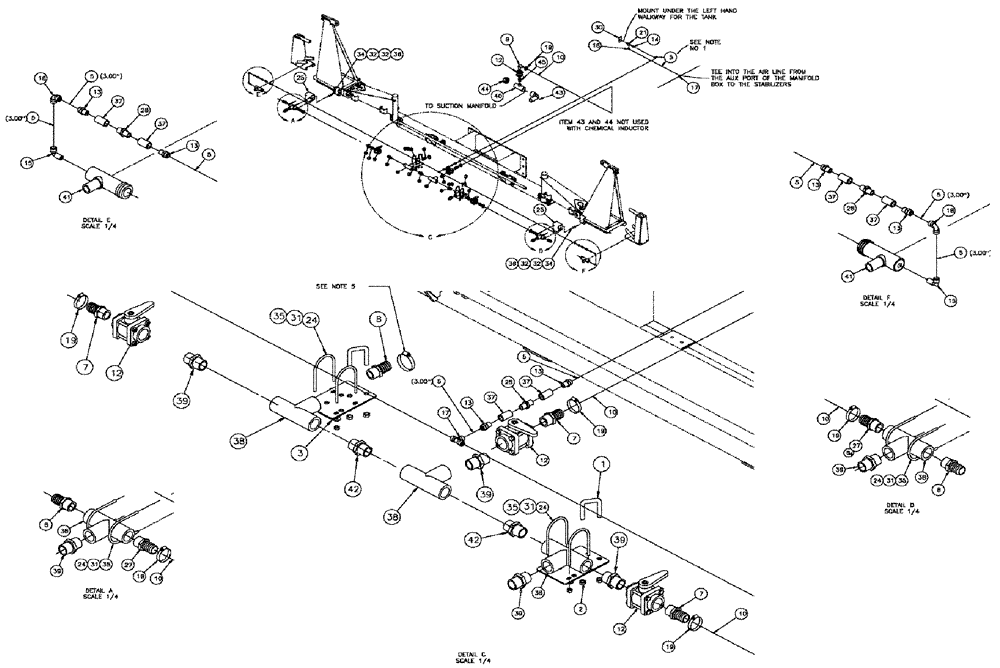

Запчасти Case IH 610 (05-002) - LIQUID RECOVERY 70/60" Liquid Plumbing

1

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

2

88902

NUT,3/8"-16

4шт.

3

87271148

PLATE

Recovery Valve

2шт.

4

BN2290335

LOOM

Split 1/4" id #1783

40шт.

5

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

100шт.

7

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

3шт.

8

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

9

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

1шт.

10

342228A1

HOSE,31.8mm ID x 30480mm L

BULK, 1-1/4" SUCTION

25шт.

12

BN73605

HYDRAULIC VALVE

BALL 1.0FP, FULL, PP

4шт.

13

BN2399401

ADAPTER

Male, 1/4" Tube

14шт.

14

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

15

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

7шт.

16

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

17

BN2399408

UNION TEE

Tube UTC140

5шт.

18

BN2399409

90 ELBOW

Tube ULC140

6шт.

19

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

21

BN2402091

VALVE

AIR TOGGLE 3-WAY

1шт.

24

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

8шт.

25

BN304511

SUPPORT

NOZZLE RECOVERY

2шт.

27

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

BARB, 1-1/2 NPT X 1-1/4HB

2шт.

28

BN307985

VALVE

CHK, 1-2.5 CRK,1/4 P

7шт.

30

BN313943

DECAL

NOZZLE RECOVERY SYSTEM

1шт.

31

BN50138

WASHER,1/4", SS

16шт.

32

BN50142

WASHER,5/16", Stainless Steel

16шт.

33

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

34

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

35

BN55359

LOCK NUT,1/4"-20, SS

16шт.

36

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

37

BN73015

COUPLING

1/4" NPT SS Full

14шт.

38

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

5шт.

39

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

6шт.

40

BN8195384

LUBE NIPPLE

LUBRICATOR MOD, 2"

1шт.

41

BN8195385

TEE

MODIFIED (NOZZLE)

6шт.

42

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

2шт.

43

BN73789

FITTING

2" 90 DEGREE POLY

1шт.

44

BN2293320

CAP

2" Poly

1шт.

45

BN73648

NIPPLE

1" Short Poly Pipe

1шт.
