(04-014) - PRODUCT PUMP ASSEMBLY

Запчасти Case IH 610 (04-014) - PRODUCT PUMP ASSEMBLY Hydraulic Plumbing

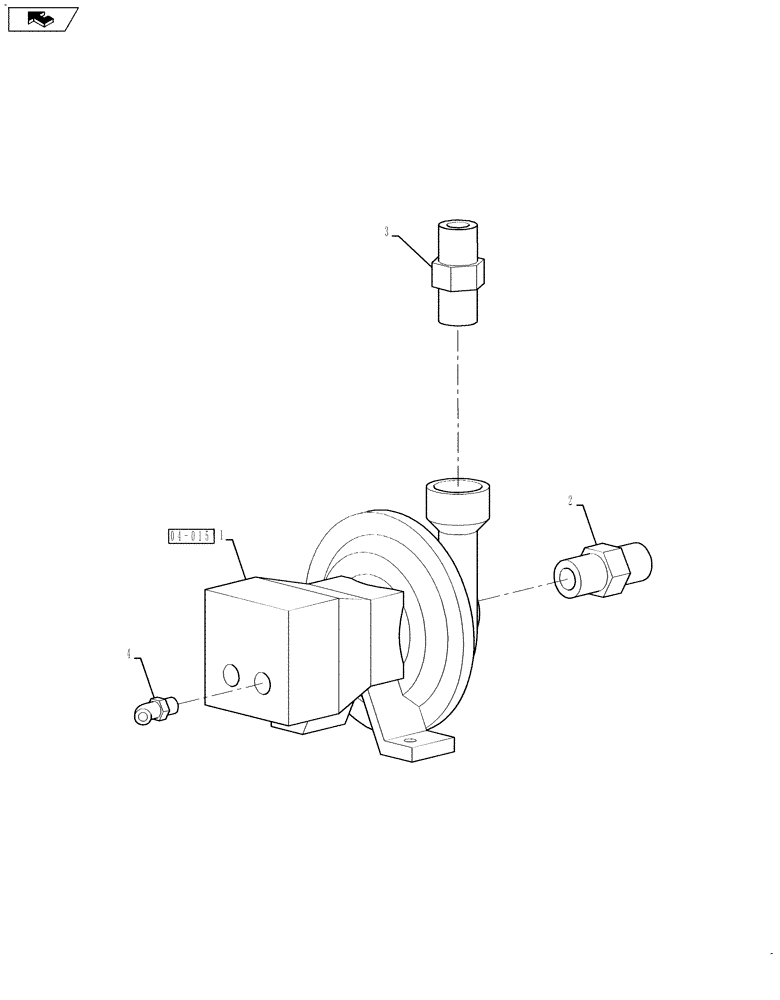

Схема запчастей Case IH 610 - (04-014) - PRODUCT PUMP ASSEMBLY Hydraulic Plumbing
3
1
4
home
04-015
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87393970

PUMP

Hypro 9303C-HM4C

1шт.

See Fig 04-015

1шт.

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

2шт.

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

Reducer, 1.25MP 1.0MP

3шт.

BN302638

FITTING

8MOR-10MB45

4шт.

If replacing product pump 87393970 BSN YAT027606, then fitting BN302638 is needed for the tank port.

1шт.

Выбрано товаров: 6
