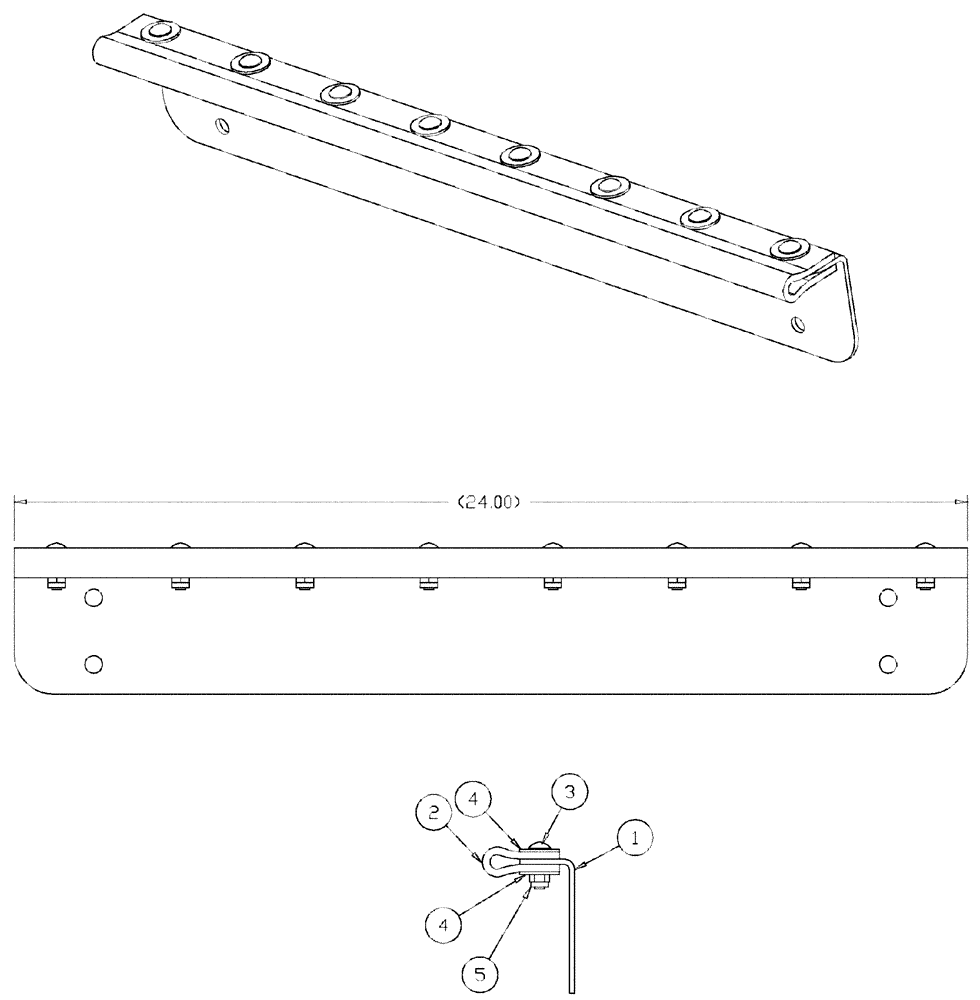

Запчасти Case IH 610 (03-047) - DOOR STOP ASSEMBLY (09) - BOOMS

1

87549644

SUPPORT

Door Stop

1шт.

2

87549646

BUMPER

RUBBER

1шт.

3

BN315877

SCREW,1/4" - 20 x 1"

1/4-20 X 1

8шт.

4

87529304

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 x 25 x 1.6 mm

16шт.

5

BN320369

NUT

1/4-20, TLG5, DOR

8шт.
