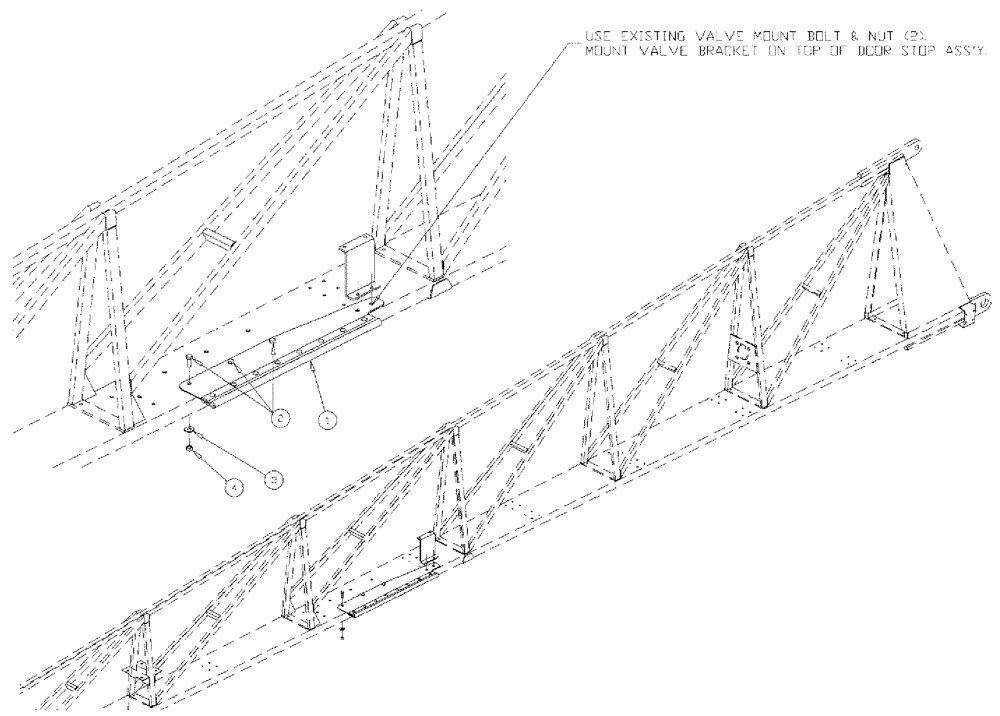

Запчасти Case IH 610 (03-045) - DOOR STOP ASSEMBLY, R.H. BOOM (09) - BOOMS

1

87600169

DOOR

Stop Assembly

1шт.

See Fig. 03-045

1шт.

2

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

3

87310597

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.
