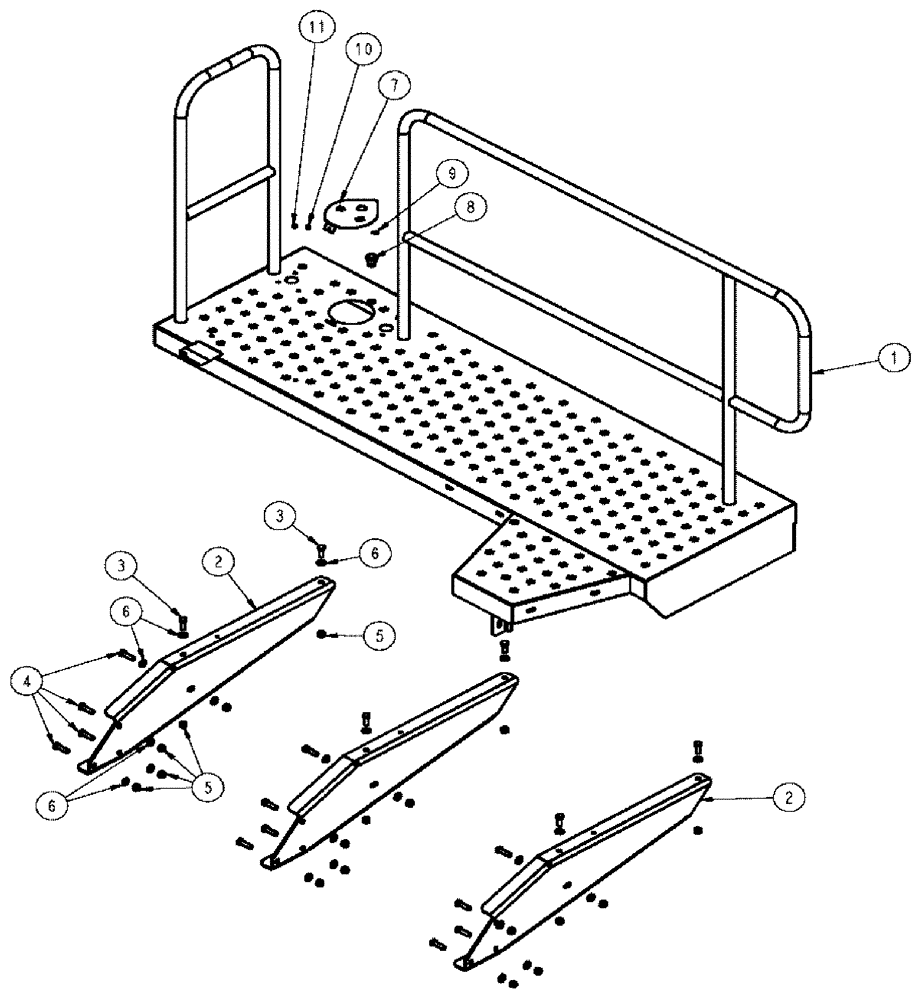

Запчасти Case IH 610 (03-038) - WALKWAY GROUP, SKID , "BEFORE SERIAL # 20114" (09) - BOOMS

1

87270632

EXTENSION

Walkway, With Rear Access

1шт.

2

87267853

SUPPORT

WALKWAY

3шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

4

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

12шт.

5

100038

NUT,M12 x 1.75, Cl 8

18шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

21шт.

7

87270633

COVER

WALKWAY FOAM

1шт.

8

87270792

LATCH

MAGNETIC

1шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

11

353308

NUT,M6 x 1.0, Cl 8

1шт.
