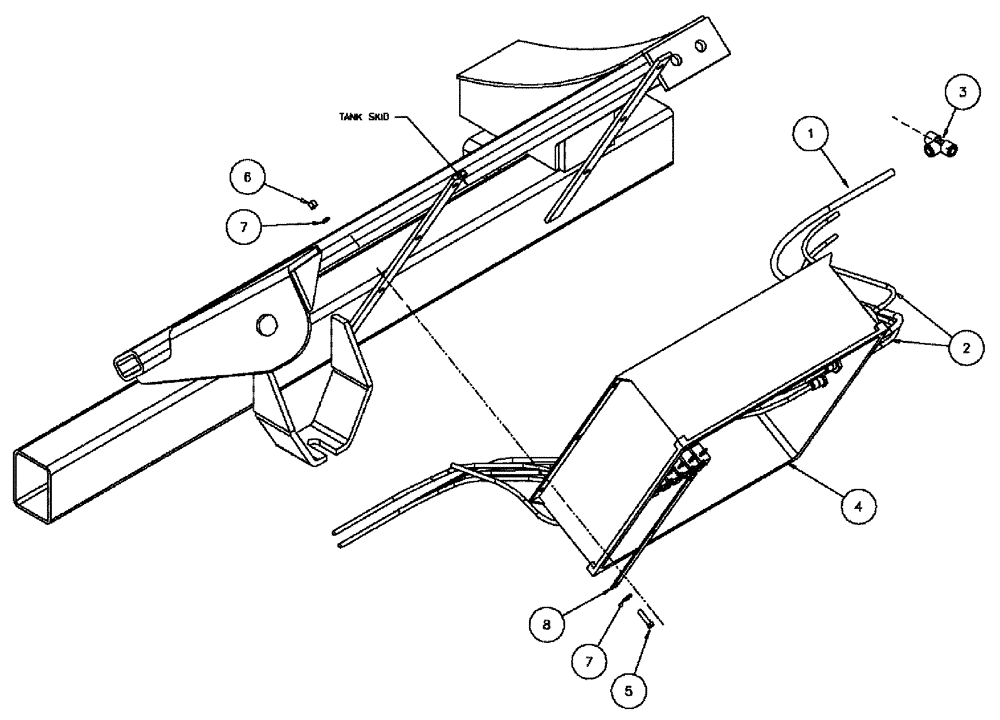

Запчасти Case IH 610 (03-035) - PNEUMATIC MANIFOLD (09) - BOOMS

1

BN2292088

AIR INTAKE TUBE

3/8" Black

7шт.

2

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

6шт.

3

BN2399414

UNION TEE

3/8" OD Tube, Push Lock Fitting

1шт.

4

BN325785

PNEUMATIC VALVE

ASSY, PNEU,BASE 520A

1шт.

4a

342973A1

MANIFOLD

pneumatic, 11 section

1шт.

Service Parts for Ref. 4

1шт.

4b

342974A1

BOX

pneumatic valve

1шт.

Service Parts for Ref. 4

1шт.

4c

342975A1

PLATE

pneumatic valve section cover

5шт.

Service Parts for Ref. 4

1шт.

4d

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

Service Parts for Ref. 4

1шт.

4e

BN2390775

GAUGE

Air 1 1/2" 0-160 PSI

1шт.

Service Parts for Ref. 4

1шт.

4f

87388151

REGULATOR

Air Pressure

2шт.

Service Parts for Ref. 4

1шт.

4g

87388327

NUT

Panel Mount, Plastic

2шт.

Service Parts for Ref. 4

1шт.

4h

BN2399401

ADAPTER

Male, 1/4" Tube

6шт.

Service Parts for Ref. 4

1шт.

4j

BN324869

BULKHEAD

UNION, 1/4 TUBE

1шт.

Service Parts for Ref. 4

1шт.

4k

BN324870

BULKHEAD

UNION, 3/8 TUBE

5шт.

Service Parts for Ref. 4

1шт.

4l

BN325786

VALVE

Pneumatic, 4-Way, w/Solenoid

5шт.

Service Parts for Ref. 4

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

6шт.

6

353308

NUT,M6 x 1.0, Cl 8

6шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

12шт.

8

87267116

RETAINER

ENCLOSURE

2шт.
