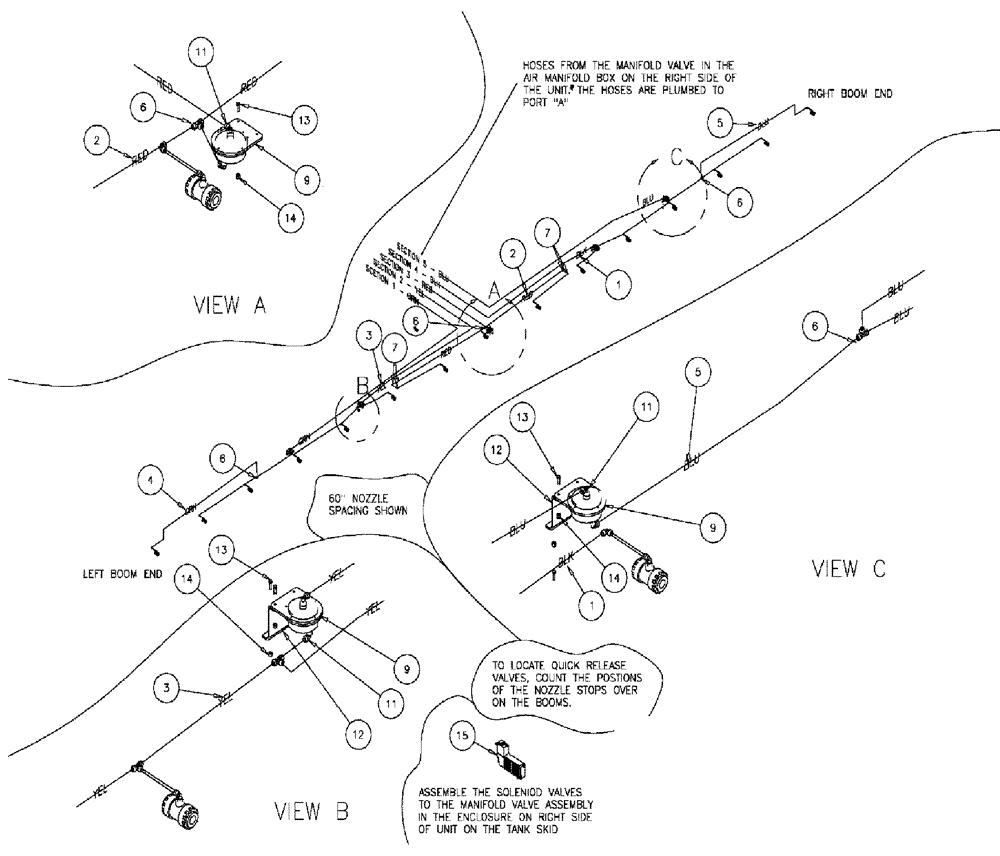

Запчасти Case IH 610 (03-032) - 5-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 60" SPACING (09) - BOOMS

1

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

42шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

14шт.

3

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

42шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

66шт.

5

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

66шт.

6

BN2399408

UNION TEE

Tube UTC140

5шт.

7

BN2399409

90 ELBOW

Tube ULC140

4шт.

9

BN2395255

SHUT-OFF VALVE

QUICK RELEASE, POLY, Start Serial: 6700

5шт.

9

342977A1

VALVE

QUICK RELEASE, POLY

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

11

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

10шт.

12

87270557

MOUNTING PLATE

Richway Valve, Boom, Start Serial: 6700

4шт.

12

343102A1

BRACKET, SUPPORTING

QR VALVE, BOOM

4шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

18шт.

14

353308

NUT,M6 x 1.0, Cl 8

18шт.

15

NS

NOT SERVICED

PNEUM, 5 SEC, VLV COMP

1шт.

See Fig. 03-033

1шт.
