Запчасти Case IH 610 (03-031) - 3-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 60" SPACING (09) - BOOMS

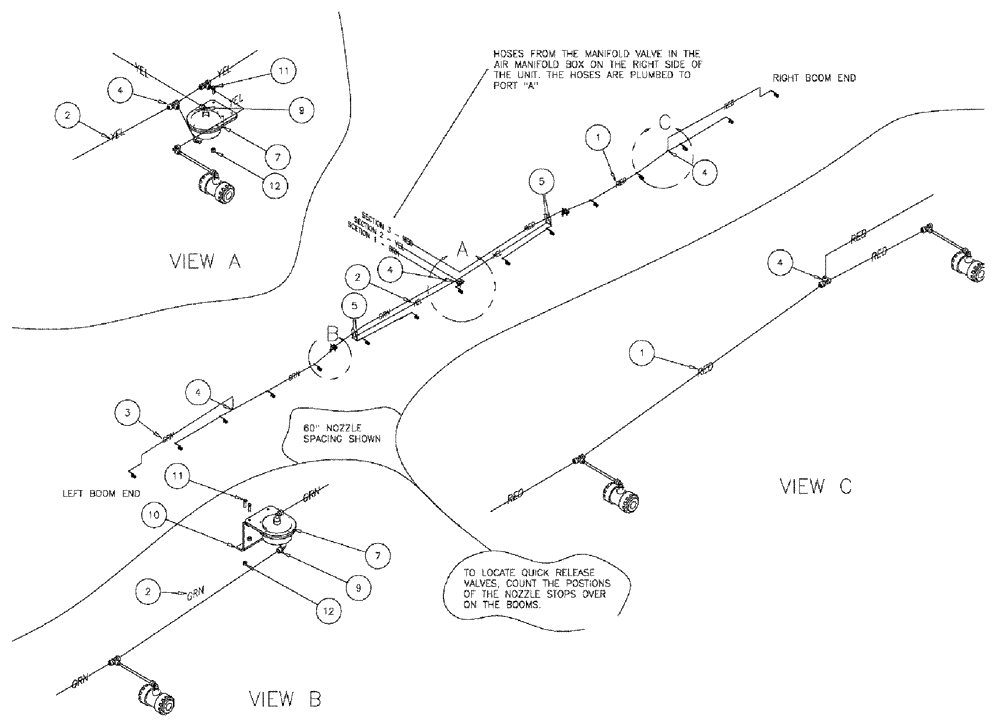

Схема запчастей Case IH 610 - (03-031) - 3-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 60" SPACING (09) - BOOMS
2
5
3
1
11
11
4
2
10
4
4
5
7
4
9
12
12
2
4
7
1
9

Артикул

Название

Примечание

Количество

1

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

66шт.

2

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

20шт.

3

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

66шт.

4

BN2399408

UNION TEE

Tube UTC140

4шт.

5

BN2399409

90 ELBOW

Tube ULC140

4шт.

7

BN2395255

SHUT-OFF VALVE

QUICK RELEASE, POLY, Start Serial: 6700

3шт.

7a

342977A1

VALVE

QUICK RELEASE, POLY

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

8

343100A1

HYD CONNECTOR

tube MC140380

6шт.

10

87270557

MOUNTING PLATE

Richway Valve, Boom, Start Serial: 6700

2шт.

10a

343102A1

BRACKET, SUPPORTING

QR VALVE, BOOM

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

12

353308

NUT,M6 x 1.0, Cl 8

10шт.

Выбрано товаров: 14
