(03-029) - 3-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 30" SPACING

Запчасти Case IH 610 (03-029) - 3-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 30" SPACING (09) - BOOMS

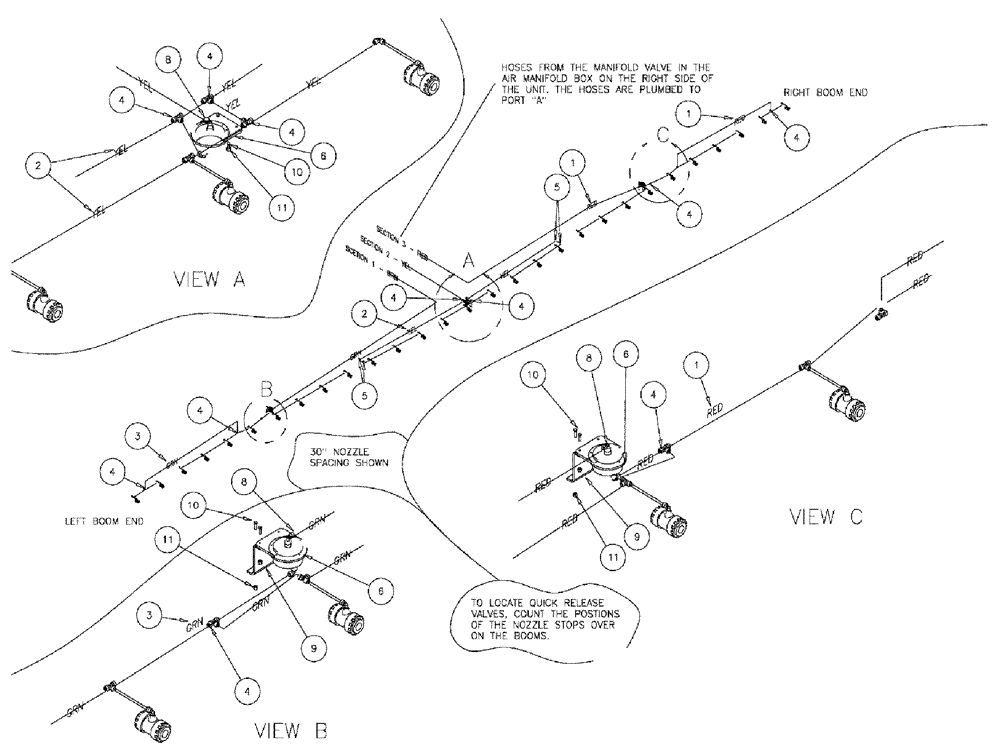

Схема запчастей Case IH 610 - (03-029) - 3-SECTION 70 BOOM GROUP, PNEUMATIC COMPONENTS 30" SPACING (09) - BOOMS
10
8
4
9
9
4
4
3
4
10
1
6
1
1
5
3
2
5
6
4
10
4
11
4
8
11
4
4
2
4
4
8
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

66шт.

2

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

20шт.

3

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

66шт.

4

BN2399408

UNION TEE

Tube UTC140

7шт.

5

BN2399409

90 ELBOW

Tube ULC140

4шт.

6

BN2395255

SHUT-OFF VALVE

QUICK RELEASE, POLY, Start Serial: 6700

3шт.

6a

342977A1

VALVE

QUICK RELEASE, POLY

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

8

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

9

87270557

MOUNTING PLATE

Richway Valve, Boom, Start Serial: 6700

2шт.

9a

343102A1

BRACKET, SUPPORTING

QR VALVE, BOOM

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

11

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

M6-1, TLN, CL8 DOR

10шт.
