Запчасти Case IH 610 (03-027) - 3-SECTION 60/85 BOOM GROUP, PNEUMATIC COMPONENTS 30/60" SPACING (09) - BOOMS

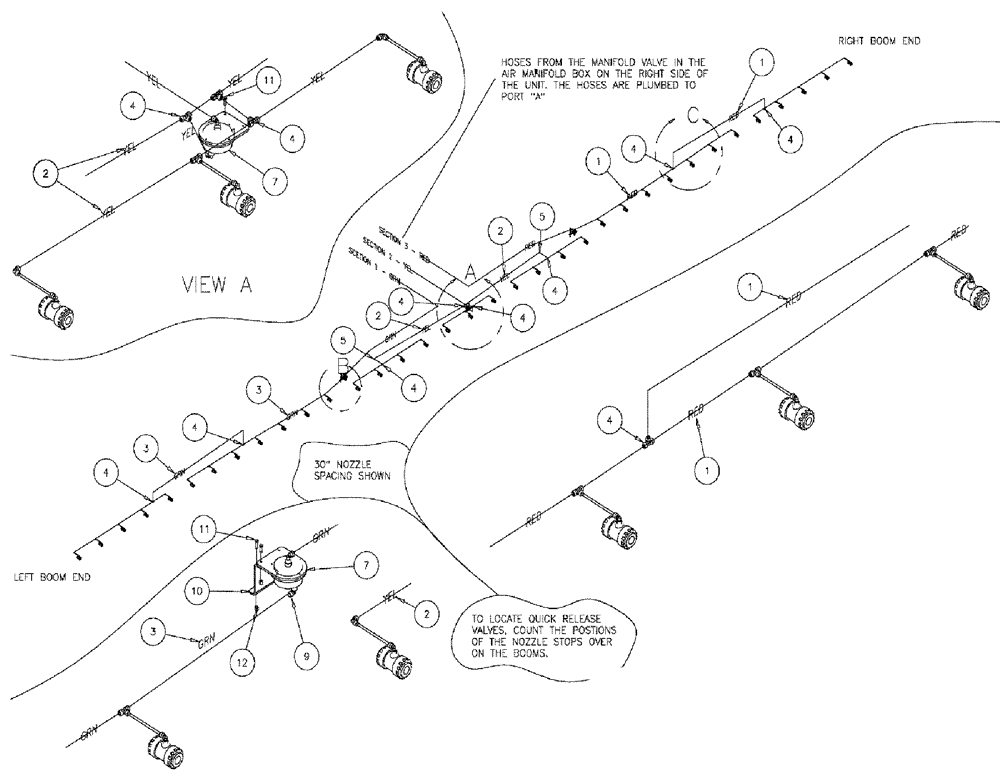

Схема запчастей Case IH 610 - (03-027) - 3-SECTION 60/85 BOOM GROUP, PNEUMATIC COMPONENTS 30/60" SPACING (09) - BOOMS
11
4
1
1
9
10
5
4
4
1
4
2
7
4
4
2
3
4
1
4
7
4
2
3
5
4
3
2
11
12
4

Артикул

Название

Примечание

Количество

1

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

71шт.

2

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

25шт.

3

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

71шт.

4

BN2399408

UNION TEE

Tube UTC140

9шт.

5

BN2399409

90 ELBOW

Tube ULC140

2шт.

7

BN2395255

SHUT-OFF VALVE

QUICK RELEASE, POLY, Start Serial: 6700

3шт.

7a

342977A1

VALVE

QUICK RELEASE, POLY

3шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

9

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

10

87270557

MOUNTING PLATE

Richway Valve, Boom, Start Serial: 6700

2шт.

10a

343102A1

BRACKET, SUPPORTING

QR VALVE, BOOM

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

12

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

M6-1, TLN, CL8 DOR

10шт.

Выбрано товаров: 14
