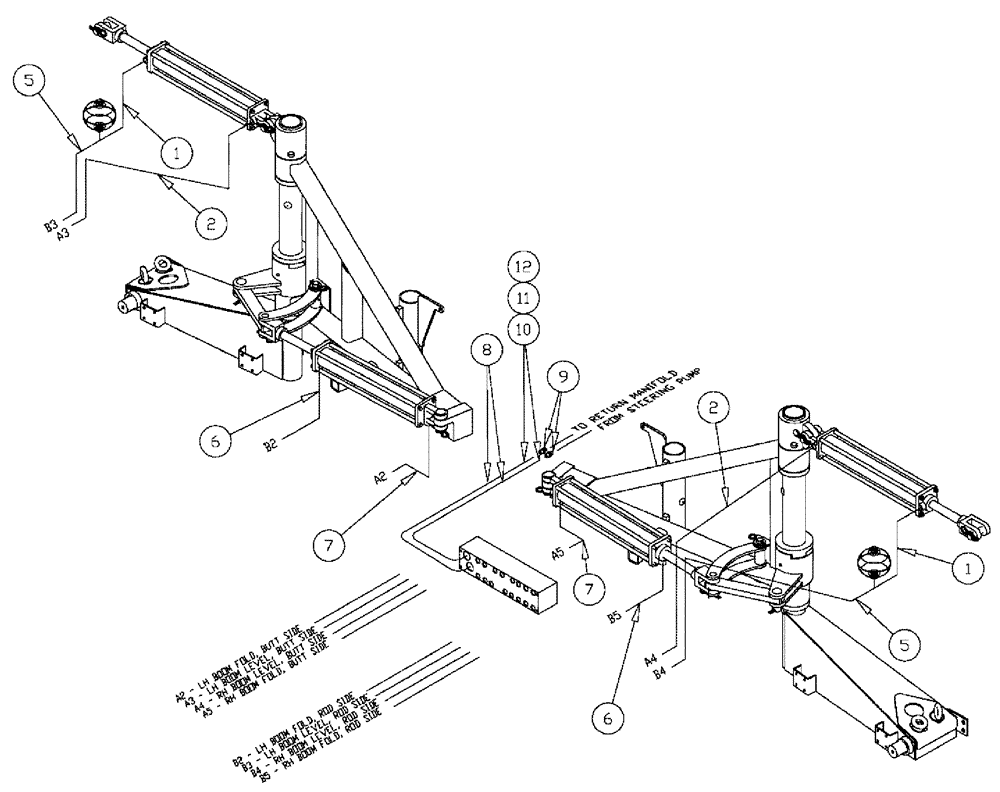

Запчасти Case IH 610 (03-019) - HOSE GROUP, 70, 520A, "SERIAL # 6700 AND LATER" (09) - BOOMS

1

BN316764

HOSE

6 X 48", Start Serial: 21136

2шт.

1a

87270161

HOSE

6 X 129"

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

87270160

HOSE

6 x 116"

2шт.

5

87270159

HOSE

6 x 81", Start Serial: 21136

2шт.

6

BN316760

HOSE ASSY.

6 X 66"

2шт.

7

BN316761

HOSE

6 X 53"

2шт.

8

87265361

HOSE

12 x 165"

2шт.

9

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

12MOR-12MOR

2шт.

10

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

2шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.
