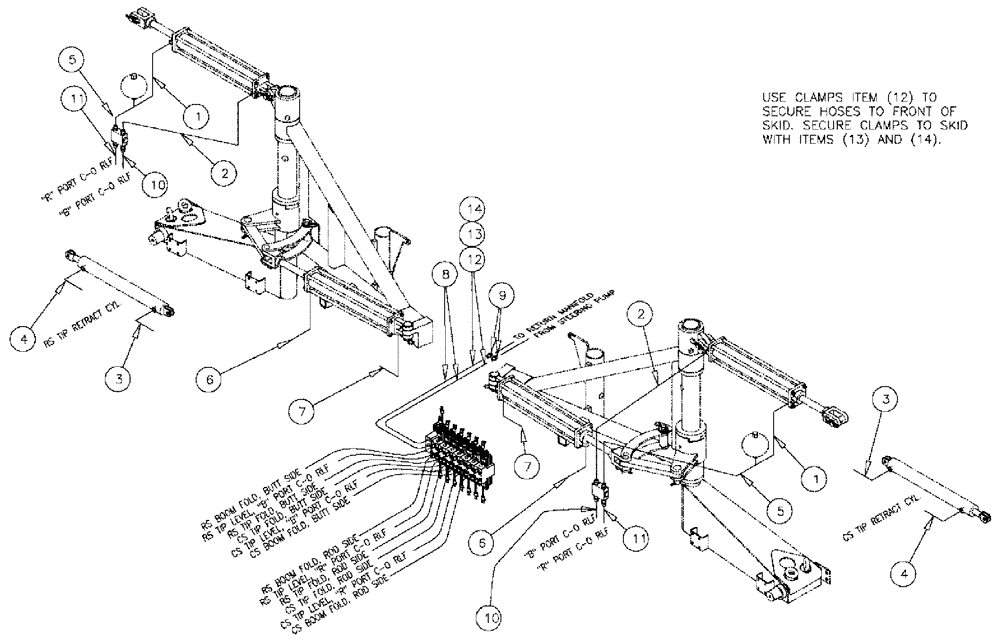

Запчасти Case IH 610 (03-018) - HOSE ASSEMBLY, 60/85 BOOM, "BEFORE SERIAL # 6700" (09) - BOOMS

1

BN316764

HOSE

6 X 48"

2шт.

2

BN317620

HOSE

6 X 57

2шт.

3

BN316758

HOSE

6 X 426

2шт.

4

BN316759

HOSE

6 X 441

2шт.

5

BN314945

HOSE ASSY.

2шт.

6

BN316760

HOSE ASSY.

6 X 66"

2шт.

7

BN316761

HOSE

ASSY, 6 X 53

2шт.

8

87265361

HOSE

12 x 165"

2шт.

9

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

12MOR-12MOR

2шт.

10

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

6 X 59"

2шт.

11

BN317619

HOSE

ASSY, 6 X 56

2шт.

12

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

2шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.
