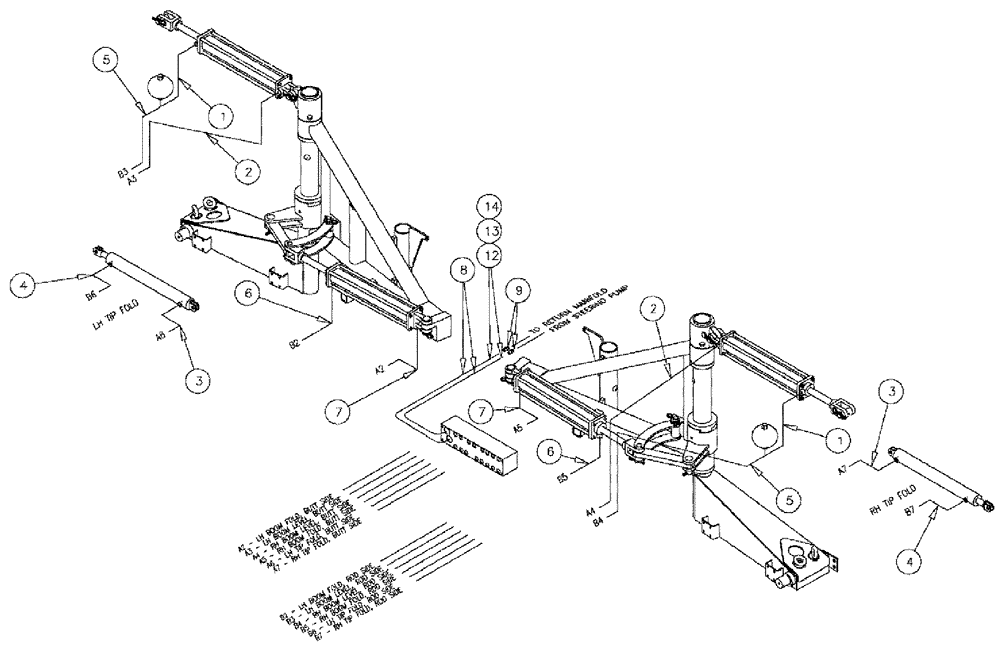

Запчасти Case IH 610 (03-017) - HOSE GROUP, 60/85, 520A, "SERIAL # 6700 AND LATER" (09) - BOOMS

1

BN316764

HOSE

ASSY, 6 X 48"

2шт.

2

87270160

HOSE

6 x 116"

2шт.

3

BN316758

HOSE

ASSY, 6 X 426"

2шт.

4

BN316759

HOSE

ASSY, 6 X 441"

2шт.

5

87270159

HOSE

6 x 81"

2шт.

6

BN316760

HOSE ASSY.

6 X 66"

2шт.

7

BN316761

HOSE

ASSY, 6 X 53"

2шт.

8

87265361

HOSE

12 x 165"

2шт.

9

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

12MOR-12MOR

2шт.

12

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

2шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.
