(03-016) - STACK VALVE COVER GROUP, "BEFORE SERIAL # 6700"

Запчасти Case IH 610 (03-016) - STACK VALVE COVER GROUP, "BEFORE SERIAL # 6700" (09) - BOOMS

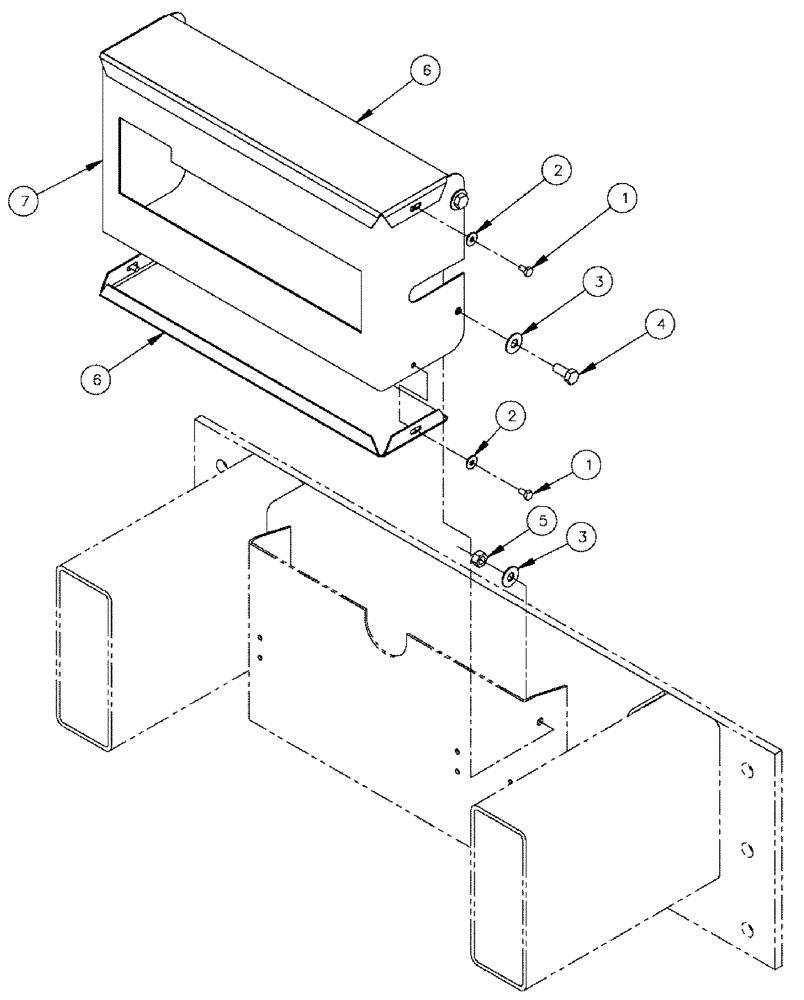

Схема запчастей Case IH 610 - (03-016) - STACK VALVE COVER GROUP, "BEFORE SERIAL # 6700" (09) - BOOMS
6
6
2
3
1
7
5
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

2

BN50138

WASHER,1/4", SS

4шт.

3

BN50145

WASHER

3/8, FW, G5

8шт.

4

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

5

88902

NUT,3/8"-16

4шт.

6

BN316821

COVER

TOP & BOTTOM

2шт.

7

BN316834

COVER ASSY

WLDMNT, COVER, STACK VALV

1шт.
