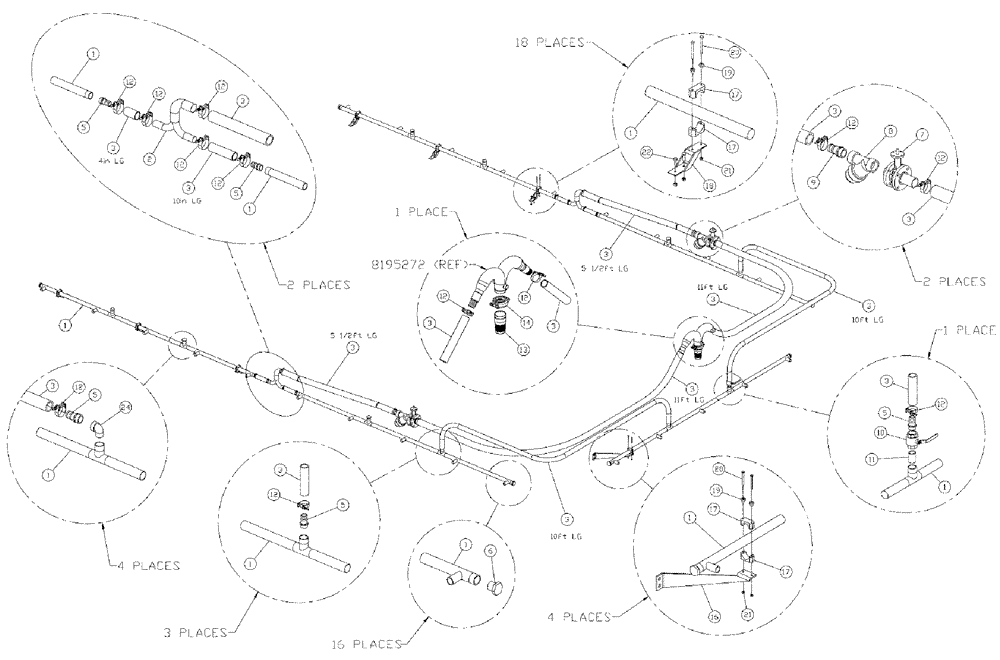

Запчасти Case IH 610 (03-007) - WET BOOM, 2" 60/85, 30" SPACING (09) - BOOMS

1

BN8195541

BOOM

WET 2"/120

7шт.

2

BN8195423

BOOM

MNFLD 2"SS

2шт.

3

BN29564

HOSE

2" Bulk EPDM Suction

92'шт.

5

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

22шт.

6

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

16шт.

7

BN8195435

BOOM SPRAY VALVE, SEE FIG. 03-009

2шт.

8

BN2407999

FILTER STRAINER,2" LSQ Strainer

IN-LINE 2" (CAM)

2шт.

10

BN2395218

VALVE,2" SS Full Port Ball Valve

Ball 2" SS Fp

1шт.

11

BN1420967

LUBE NIPPLE

LUBRICATOR 2" CLOSE S.S.

1шт.

12

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

24шт.

13

BN2399445

COUPLING

GROOVED/HB 3"

1шт.

14

BN2399444

CLAMP,80mm ID

VICTAULIC 3"

1шт.

16

BN8191242

SUPPORTING ARM

WET BOOM SUPT REAR

4шт.

17

BN2403325

CLAMP

PIPE 2" STAUFF

22шт.

18

87270285

MOUNTING PLATE

WET BOOM, Start Serial: 6700

18шт.

18a

BN301628

MOUNTING PLATE

Wet Boom

18шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

19

BN2403312-001

SPACER

INSERT (STAUFF)

44шт.

20

BN2403253

BOLT

HH 1/4-20 X 4 1/2SS

44шт.

22

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

28шт.

23

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

24

BN2296593

ELBOW

STREET 2" 90 POLY

4шт.

25

BN8195280

ASSEMBLY, BOOM SPRAY MANIFOLD, SEE FIG. 03-008

2шт.
