Запчасти Case IH 610 (01-016) - ELECTRICAL GROUP (06) - ELECTRICAL

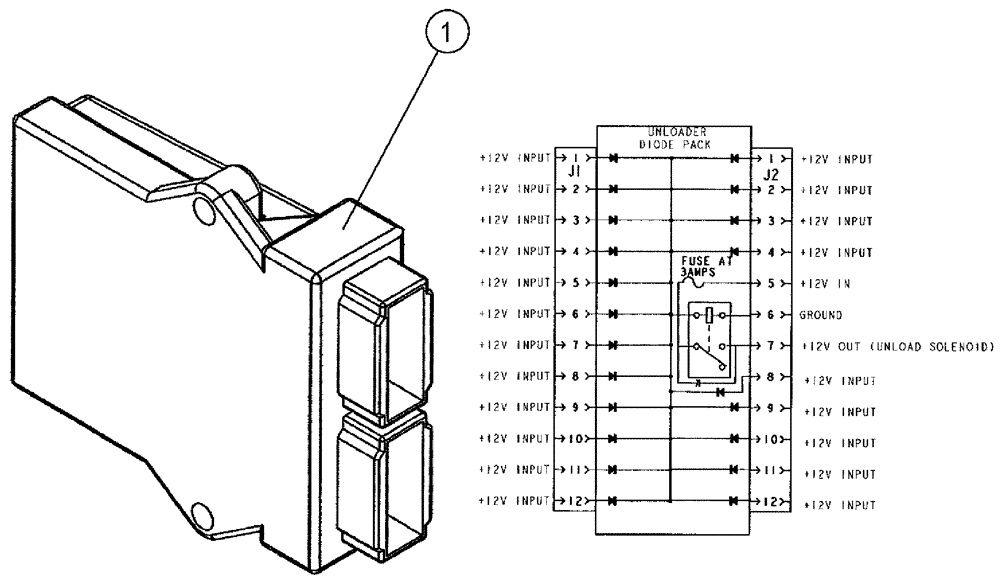

1

BN325213

MODULE

UNLOAD DETECT

1шт.

2

NS

NOT SERVICED

Group, Lights, Mast

1шт.

See Fig. 01-015

1шт.

3

NS

NOT SERVICED

Harness, Hydraulic Control, Start Serial: 21136

1шт.

See Fig. 01-018

1шт.

4

87270020

WIRE HARNESS

520A, Hydraulic Control

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

See Fig. 01-019

1шт.

5

87272682

WIRE HARNESS

520A Product Control, Start Serial: 21136

1шт.

See Fig. 01-020

1шт.

6

87271866

HARNESS

Product Control, 520A, Start Serial: 20001

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

See Fig. 01-021

1шт.

7

87271833

WIRE HARNESS

520A, PRODUCT

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

8

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.
