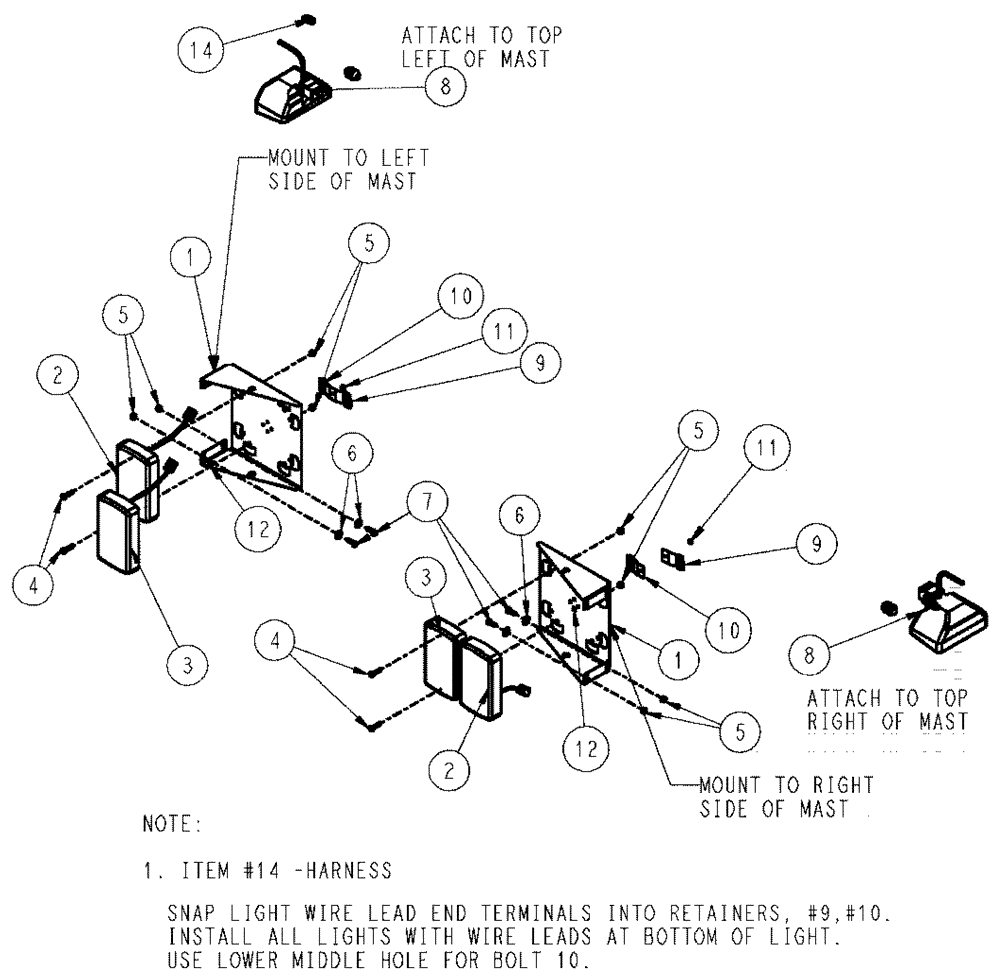

Запчасти Case IH 610 (01-015) - MAST LIGHTS GROUP (06) - ELECTRICAL

1

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

2

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V, 36 LED Pattern, BSN YBT029439

2шт.

2

84385294

LAMP

LED Red, 12V, 24 LED Pattern, ASN YBT029439

2шт.

3

BN325078

LIGHT

Turn, Led Amber, 12V, 36 LED Pattern, BSN YBT029439

2шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern, ASN YBT029439

2шт.

4

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

5

BN55359

LOCK NUT,1/4"-20, SS

16шт.

6

BN50138

WASHER,1/4", SS

8шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

8

87658615

LAMP

Flood, Assembly

2шт.

See Fig. 01-010

1шт.

9

87267088

RETAINER

Assembly, Deutsch RH

2шт.

10

87267087

RETAINER

Assembly, Deutsch LH

2шт.

11

225-30210

NUT,#10-32, Stainless

2шт.

12

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

PHILLIP

2шт.

14

87269428

WIRE HARNESS

Extension, boom Lights

2шт.

Not Shown

1шт.
