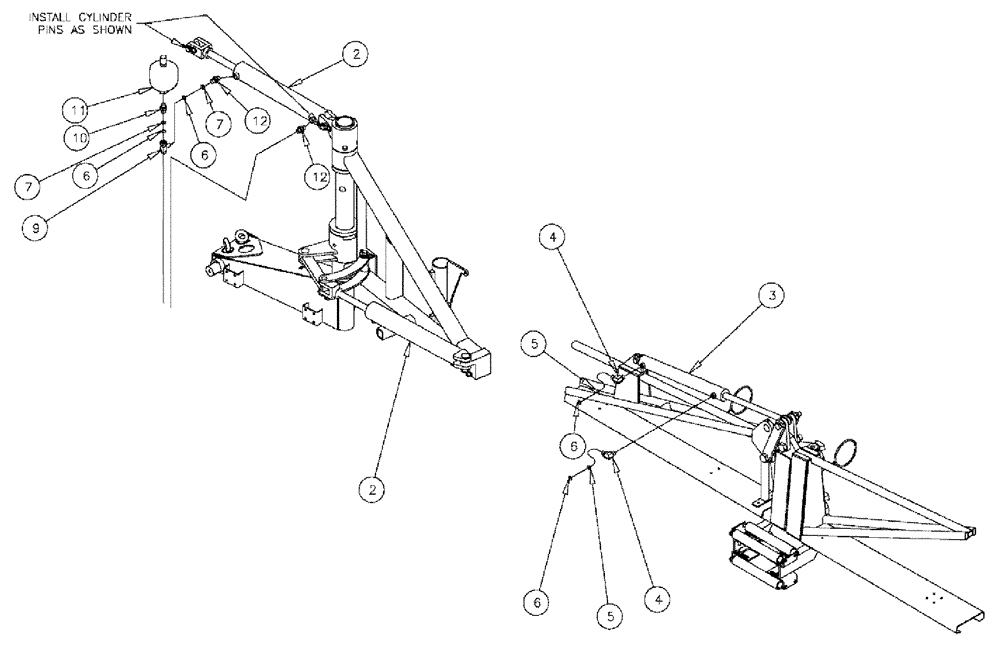

Запчасти Case IH 610 (02-004) - HYDRAULIC CYLINDER GROUP, 60/85 Cylinders

2

87266454

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 457.2mm Stroke

Hydraulic, 3 x 18 x 1.25

4шт.

See Fig. 02-008

1шт.

87266454R

Reman Cyl -- Hydraulic, 3 x 18 x 1.25

REMAN-HYD CYLINDER

4шт.

87266454C

Return Number

CORE-HYD CYLINDER

1шт.

3

87266453

CYLINDER,Double Acting, 28.57mm Rod, 457.2mm Stroke

Hydraulic, 2.5 x 18 x 1.125

2шт.

See Fig. 02-009

1шт.

4

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

BN313268

ORIFICE

.042 -6 Disk

4шт.

6

BN305412

O-RING

FOR -6 FFOR

8шт.

7

BN316688

ORIFICE

.140,-6 DISK

4шт.

9

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

10

BN302647

FITTING

6MOR-8MB

2шт.

11

87266797

ACCUMULATOR

60 CU 2900 psi

2шт.

12

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.
