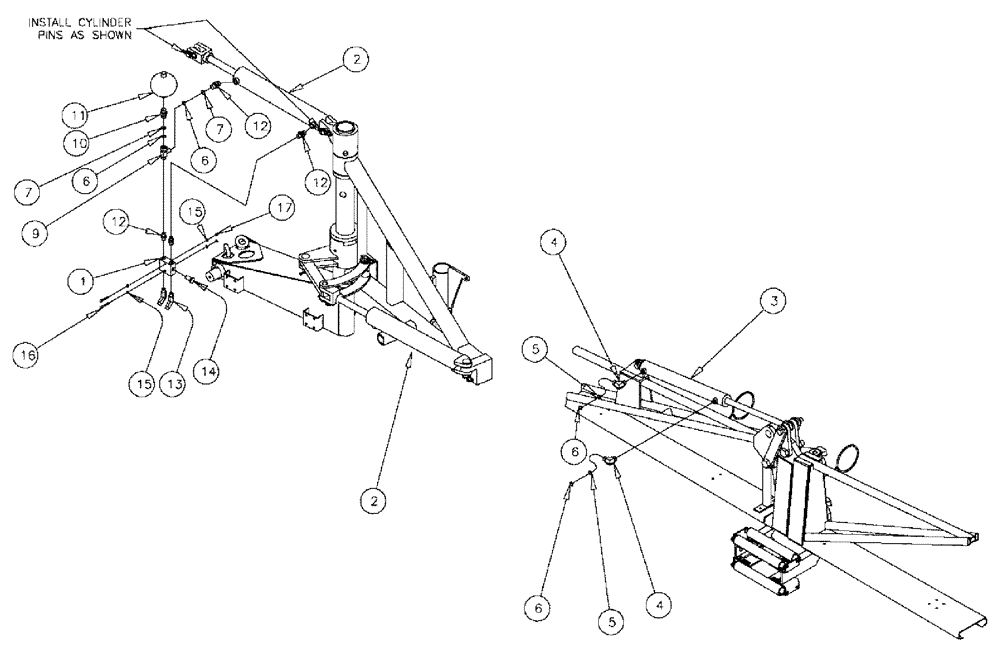

Запчасти Case IH 610 (02-003) - HYDRAULIC CYLINDER GROUP, 60/85 Cylinders

1

BN66796

BLOCK

RELIEF, BOOM LIFT

2шт.

2

BN316644

CYLINDER,Double Acting, 31.75mm Rod, 457.2mm Stroke

HYD, 3 X 18 X 1.25

4шт.

See Fig. 02-006

1шт.

BN316644R

REMAN-HYD CYLINDER

610 (9/09-12/11)

4шт.

BN316644C

CORE-HYD CYLINDER

Return Number

1шт.

3

BN316643

CYLINDER,Double Acting, 28.57mm Rod, 457.2mm Stroke

Hydraulic, 2.5 x 18 x 1.13

2шт.

See Fig. 02-007

1шт.

4

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

BN313268

ORIFICE

.042 -6 Disk

4шт.

6

BN305412

O-RING

FOR -6 FFOR

8шт.

7

BN316688

ORIFICE

.140, -6 DISK

4шт.

9

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.

10

BN302647

FITTING

6MOR-8MB

2шт.

11

87266797

ACCUMULATOR

60 CU 2900 psi

2шт.

11a

87054976

WARNING DECAL

Accumulator

2шт.

Associated Part of Accumulator, 60 Cu 2900 ps, P/N 87266797

1шт.

12

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

4шт.

13

BN302637

FITTING

6MOR-6MB45

4шт.

14

BN98227

VALVE

Check, 30 PSI Waterman

2шт.

14a

BN982191

FOR CARTRIDGE (P/N BN98227)

1шт.

15

BN50138

WASHER,1/4", SS

8шт.

16

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

4шт.

17

BN55359

LOCK NUT,1/4"-20, SS

4шт.
