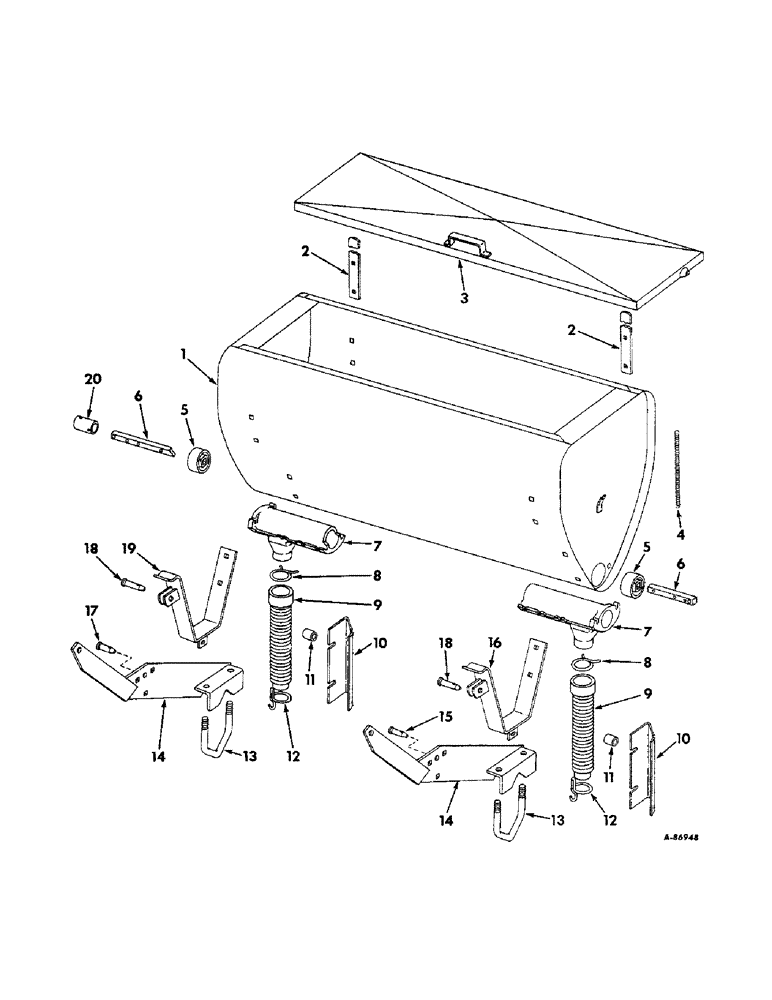

Запчасти Case IH DRY (A-100) - DRY FERTILIZERS, HOPPER, SUPPORTS AND HOSES

1

483090R91

HOPPER ASSY, auger fertilizer

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

2

483149R1

SUPPORT, hopper lid

4шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

472401R11

LID ASSY, hopper

2шт.

12235R1

PIN, 1/8 x 3/8 C-Z cotter 1/8" x 5/8"

4шт.

4

479124R1

VALVE SPRING

SPRING, hopper hold-down

4шт.

5

472417R1

BEARING

auger

4шт.

6

487632R2

BAR

auger feed

2шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

12шт.

7

472416R2

HOUSING

auger

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

8

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, hose upper

4шт.

9

492855R91

PACKAGE, fertilizer hose, 101 corrugations, consists of (1) bolt 19505R1, (1) clamp 860200R1, (1) clip 526969R1, (1) hose 475471R2 (NSS), (1) nut 120375, (1) washer 625533R1

1шт.

10

512377R2

GUARD, fertilizer hose

4шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

8шт.

11

27934A

SPACER, extra heavy, 1/2 x 1-1/32 long

4шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 C-Z std-hd

4шт.

21628R1

PIN

1/8 x 3/4 C-Z self-opening cot

4шт.

12

526269R1

FASTENER

CLIP, hose lower

4шт.

19505R1

BOLT,1/4" - 20 x 1", Class 2

1/4 x 1 CDP step

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

625533R1

WASHER

9/32 x 1 x 18 ga CDP

4шт.

13

483045R1

BOLT,3/4" - 10 x 5.2"

U-BOLT, attaching

4шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

14

483082R91

BRACKET ASSY, hopper RH

2шт.

14

483081R91

BRACKET ASSY, hopper LH

2шт.

15

483074R1

PIN, hopper support outer anchor

2шт.

517843R1

COTTER PIN

PIN, quick attachable cotter

2шт.

16

483076R91

SUPPORT ASSY, hopper RH

2шт.

17

520676R1

PIN, hopper support inner anchor

2шт.

517843R1

COTTER PIN

PIN, quick attachable cotter

2шт.

18

22108R1

PIN, 5/8 x 1-5/16 C-Z std-hd

4шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

4шт.

19

483075R91

SUPPORT ASSY, hopper LH

2шт.

20

472415R1

SPACER

COUPLING, auger

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/23 rod end

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

520177R1

PIN

quick attachable cotter

2шт.
