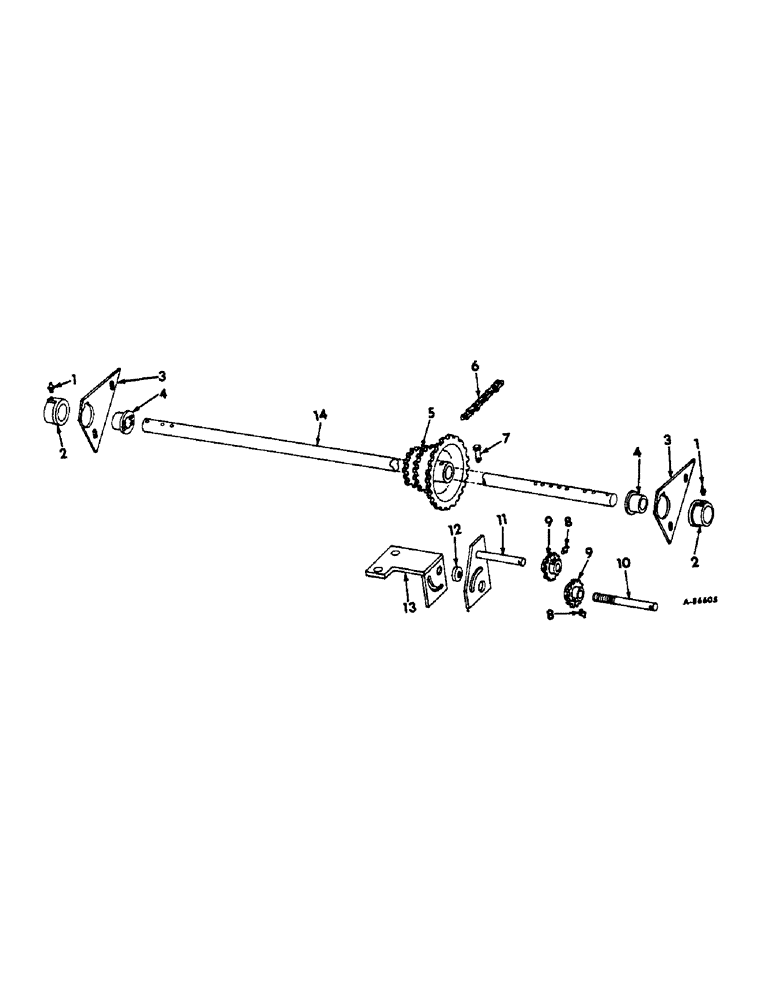

Запчасти Case IH DRY (A-081) - DRY FERTILIZERS, DRY FERTILIZER HOPPER DRIVE, FOR MACHINES BUILT 1967 & SINCE W/ROUND DRIVE ROD

1

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub

2шт.

2

472431R1

COLLAR

BEARING, drive shaft

2шт.

3

472430R1

SUPPORT

drive bearing

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

4

483535R1

BUSHING

fertilizer drive rod

2шт.

5

483537R1

SPROCKET ASSY.

SPROCKET, drive, 11, 15 & 18T

1шт.

6

CHAIN, fertilizer drive, use 43 links of 1 in. extended pitch agricultural roller chain from a 10 ft roll marked, 569088R91, one, connecting link, 457113R91 and one offset link, 457114R91

1шт.

7

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN, CLEVIS, , Rod end 3/16" x 1 3/4"

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub, used only w/gray iron sprocket, 472344R1

2шт.

9

472344R2

DRIVE SPROCKET

SPROCKET, chain tightener idler, 6T

2шт.

10

472342R1

STUD

idler

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex jam

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

11

472438R91

BAR

STRAP ASSY, chain tightener

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z short sq-nk

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

12

622567R1

WASHER

BUSHING, chain tightener

1шт.

13

472437R1

SUPPORT

BRACKET, chain tightener

1шт.

14

483536R1

ROD

fertilizer drive

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16 x 2-1/4 C-Z cot

3шт.
