Запчасти Case IH DRY (A-055) - DRY FERTILIZERS, AUGERS AND RELATED PARTS

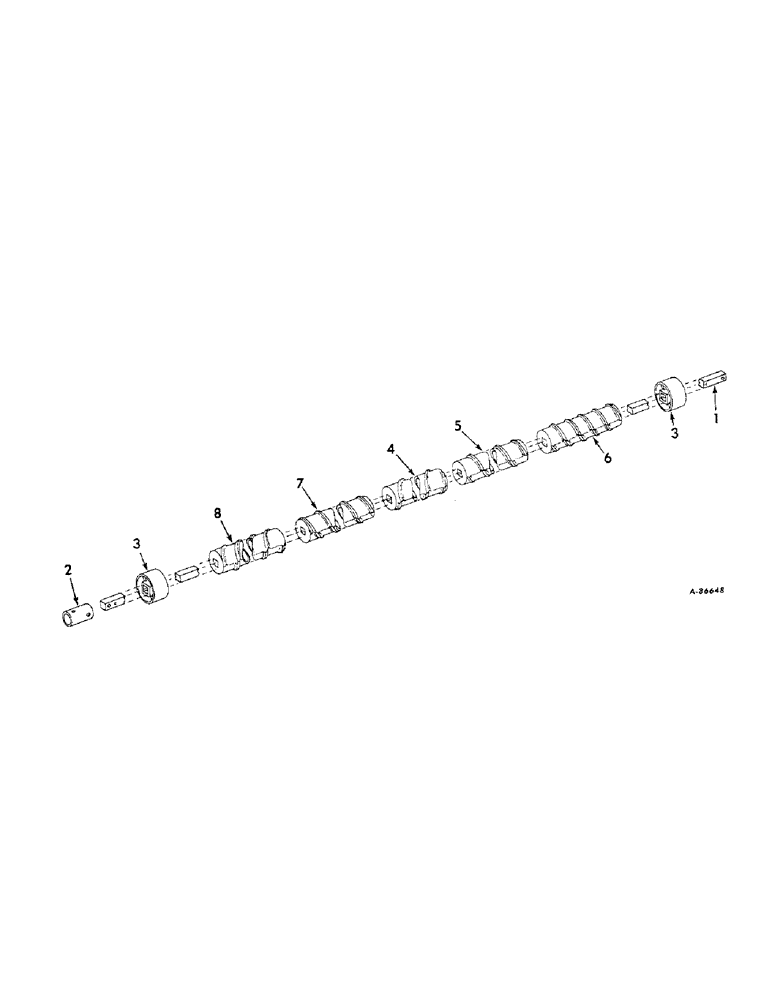

Схема запчастей Case IH DRY - (A-055) - DRY FERTILIZERS, AUGERS AND RELATED PARTS
3
7
6
2
3
1
8
4
5

Артикул

Название

Примечание

Количество

1

487632R2

BAR

auger feed

4шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

24шт.

2

484394R1

TUBE, coupling outer

2шт.

2

484387R1

SPACER, coupling inner

2шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

6шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

6шт.

520177R1

PIN

quick attachable cotter

2шт.

3

472417R1

BEARING

auger

8шт.

4

472419R1

AUGER

low rate right inner

2шт.

472419R1 8.94" 2.12" 2.00" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

4

472423R1

AUGER

high rate right inner

2шт.

4

472425R1

AUGER

extra high rate right inner

2шт.

472425R1 8.94" 2.25" 1.88" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

4

481898R1

AUGER, low rate right inner short

2шт.

4

480970R1

AUGER

high rate inner short

2шт.

4

489062R1

AUGER, extra high rate right inner short

2шт.

5

472421R1

AUGER

low rate right outer

4шт.

472421R1 8.94" 2.25" 2.12" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

5

472425R1

AUGER

high rate right outer

4шт.

472425R1 8.94" 2.25" 1.88" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

5

483534R1

AUGER

extra high rate right outer

4шт.

483534R1 8.94" 2.41" 2.25" RH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

21762R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z (or as required)

4шт.

6

(Not used in this application)

1шт.

7

472418R1

AUGER

low rate left inner

2шт.

472418R1 8.94" 2.12" 2.00" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

472422R1

AUGER

high rate left inner

2шт.

7

472424R1

AUGER

extra high rate left inner

2шт.

472424R1 8.94'' 2.25" 1.88" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

7

481897R1

AUGER, low rate left inner short

2шт.

7

480969R1

AUGER

high rate left inner short

2шт.

7

489061R1

AUGER, extra high rate left inner short

2шт.

7

472424R1

AUGER

high rate left outer

4шт.

472424R1 8.94'' 2.25" 1.88" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

8

472420R1

AUGER

low rate left outer

4шт.

472420R1 8.94" 2.25" 2.12" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

8

483533R1

AUGER

extra high rate left outer

4шт.

483533R1 8.94" 2.41" 2.25" LH, HAS A .640/.680" SQUARE HOLE. 8/4/01 BW CAM

1шт.

21762R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z (or as required)

4шт.

Выбрано товаров: 40
