Запчасти Case IH DRY (A-030) - DRY FERTILIZERS, FIBERGLASS HOPPER, HOSES AND SUPPORTS

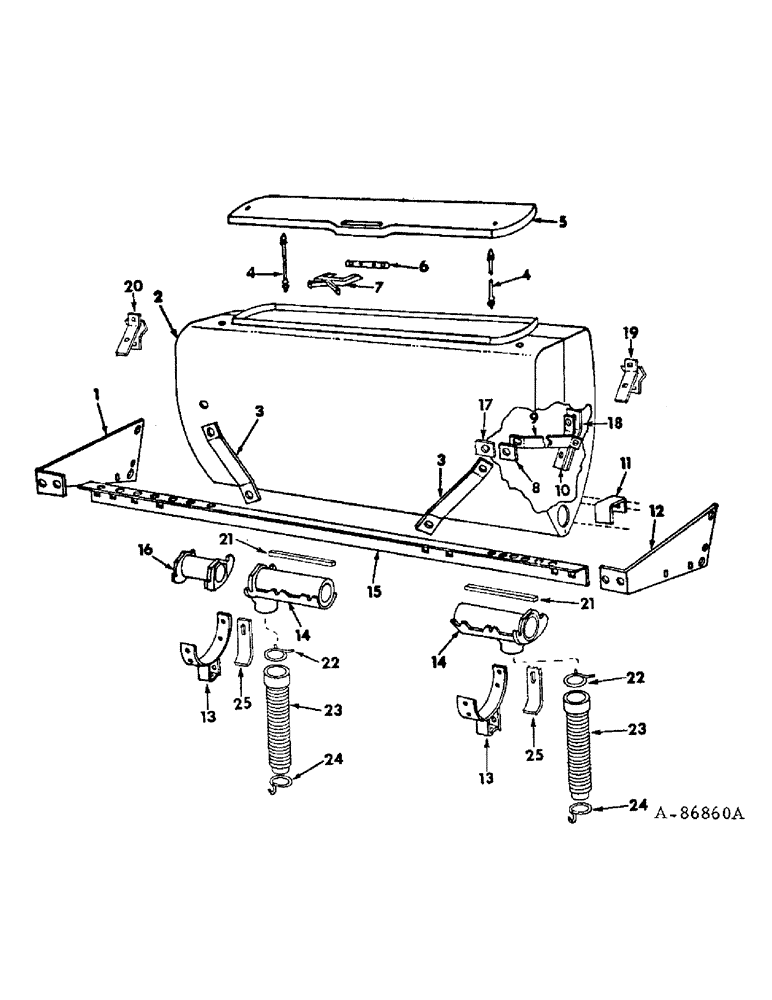

Схема запчастей Case IH DRY - (A-030) - DRY FERTILIZERS, FIBERGLASS HOPPER, HOSES AND SUPPORTS
7
23
14
12
8
1
18
23
5
21
24
15
25
16
6
13
4
19
13
11
24
22
21
10
14
3
20
9
2
17
3
25
22
4

Артикул

Название

Примечание

Количество

1

480145R1

PLATE, lift rod support LH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 1 C-Z hex-hd cap

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

483444R11

HOPPER

ASSY, fiberglass

1шт.

3

480144R1

STRAP, lift rod angle

2шт.

4

483455R1

STRAP

lid retainer

2шт.

5

483446R11

COVER

ASSY, hopper

1шт.

483451R1

RIVET

lid retainer

2шт.

6

483454R1

RETAINER

latch

1шт.

483450R1

RIVET

latch retainer

2шт.

7

483445R1

LATCH

cover

1шт.

8

472429R1

BAR

PAD, hopper

2шт.

9

492827R1

BRACE, hopper LH, also order pad, 492829R1 & pad, 492830R1

1шт.

9

492828R1

BRACE, hopper RH, also order pad, 492829R1 & pad, 492830R1

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

472407R1

REINFORCEMENT, hopper

2шт.

11

545298R1

GUIDE, marker chain

3шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

12

480146R1

PLATE, lift rod support RH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 1 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

483447R91

SUPPORT

ASSY, hopper

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

4шт.

14

483441R2

HOUSING

auger feed

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

15

483442R1

ANGLE, lift rod LH

1шт.

15

483443R1

ANGLE, lift rod RH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

16

483456R1

SPACER

auger housing, for narrow row fertilizer attachment

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16-18 x 1-1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

17

492830R1

PAD, hopper reinforcing short

2шт.

18

492829R1

PAD, hopper reinforcing long

2шт.

19

489789R2

BRACKET

ASSY, fertilizer outer

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

20

489791R2

BRACKET ASSY, fertilizer inner

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

4шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

21

SEAL, housing and hopper, 1/4 x 3/8 x 6 in. long, use 6 in. from 33 ft roll marked 541206R1

2шт.

22

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, hose upper

2шт.

23

492853R91

SET

PACKAGE, fertilizer hose, 30 corrugations, double disk opener, consists of (1) clamp 860200R1, (1) clip 626441R1, (1) hose 472426R2 (NSS), (1) pin 610784R1

2шт.

23

492852R91

TUBE

PACKAGE, fertilizer hose, 43 corrugations, runner opener, consists of (1) bolt 19428R1, (1) clamp 860200R1, (1) clip 481967R1, (1) hose 482578R1 (NSS), (1) nut 120376, (1) washer 120214, (1) washer 619855R1

1шт.

24

626441R1

CLIP

hose lower, double disk opener

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

2шт.

24

481967R1

CLIP

hose lower, runner opener

2шт.

19428R1

BOLT, 5/16 x 5/8 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

25

472410R1

RETAINER, tank

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

Выбрано товаров: 81
