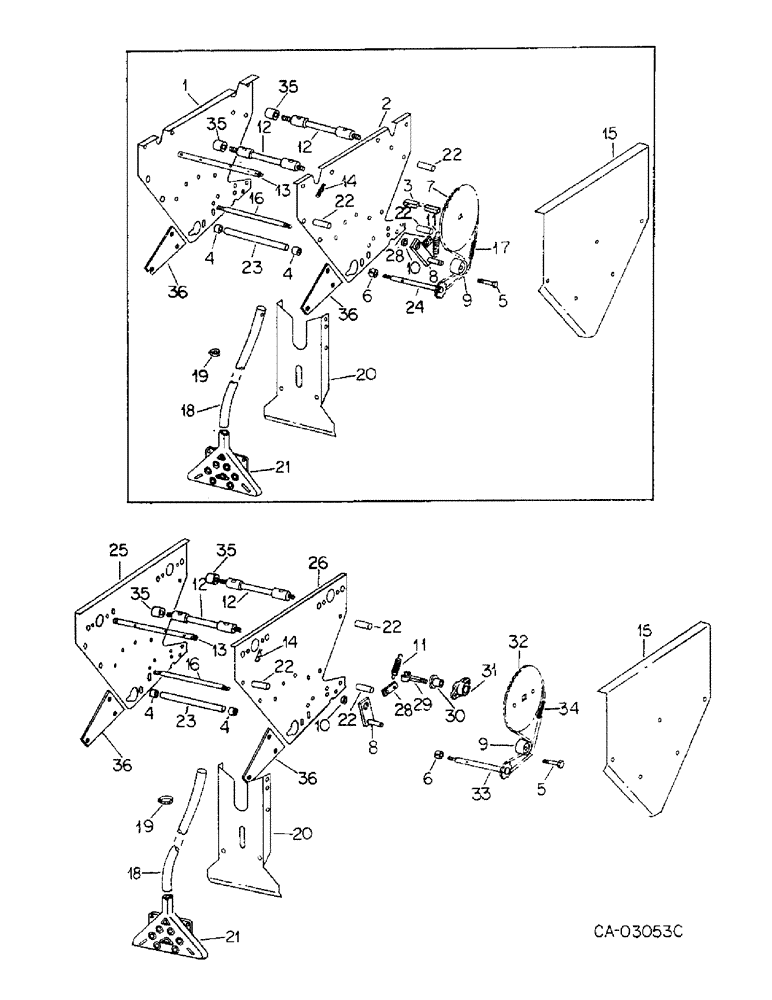

Запчасти Case IH DRY (A-183) - DRY FERTILIZERS, DRIVE UNIT AND MOUNTING, FOR HERBICIDE

1

57794C3

SHEET, side LH, built 1972 through 1976

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

57795C3

SHEET, side RH, built 1972 through 1976

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex-hd mach

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

56790C1

SHAFT

sprocket, 9.2 in. long, built 1972 through 1976

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

583838R1

SPACER, 9/16 x 7/8 x 1-11/16, 295 planter

2шт.

4

681624R1

SPACER, 9/16 x 1 x 2 pipe, 296 and 386 planters

1шт.

588898R1

SPACER, 9/16 x 7/8 x 2-1/2 pipe, 296 and 386 planters

1шт.

5

56687C1

BOLT, 7/16-14 x 3 znd hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 znd hex jam

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

1шт.

607895R1

WASHER

15/32 x 1 x 16 ga znd

1шт.

6

56686C1

SPACER

drive shaft

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

7

539766R2

SPROCKET ASSY.

SPROCKET W/HUB, 42 teeth, built 1972 through 1976

1шт.

22915R1

PIN, 1/8 x 1-3/4 C-Z cot

1шт.

8

57800C2

STRAP

ASSY, idler

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga znd

1шт.

9

57796C1

ROLLER

chain tightener

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23559R1

WASHER

13/32 x 1-7/8 x 16 ga C-Z

1шт.

21041R1

WASHER

.531 x 2 x 16 ga znd

1шт.

10

548140R2

BUSHING

chain tightener

1шт.

11

543743R2

SPRING

chain tightener

1шт.

12

56679C2

ROD ASSY, tie

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

56791C1

HANDLE

hopper support

1шт.

22957R1

PIN, 1/4 x 2-1/2 znd slt spring

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

14

486830R1

COTTER PIN

PIN, quick attachable cot

1шт.

15

548513R2

SHIELD, chain

1шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

56690C1

ROD

tie, 295 planter

1шт.

16

548516R1

ROD

tie, 296 and 386 planters

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

17

CHAIN, hopper drive, use 85 links from 10 ft roll marked, 489766R91, one connecting link, 489467R1 and one offset link, 489468R91, built 1972 through 1976

1шт.

18

HOSE, herbicide, 9.5 in. long, make from 100 ft roll, 59187C1

1шт.

19

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

1шт.

20

548522R1

SHIELD

rear spreader

1шт.

21

543189R1

DEFLECTOR

bank

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

22

M43715

SPACER, shield 1/4 x 1-7/8 std pipe

3шт.

23

56689C1

SPACER, shield long, 9.67 in. long, 295 planter

1шт.

23

56693C1

SPACER, shield long, 10.66 in. long, 296 and 386 planters

1шт.

24

56685C1

SPROCKET ASSY.

SPROCKET AND AXLE ASSY, 10 tooth, 295 planter, built 1972 through 1976

1шт.

24

56688C1

SPROCKET AND AXLE ASSY, 10 tooth 296 planter

1шт.

24

61922C1

SPROCKET AND AXLE ASSY, 10 tooth, 386 planter, built 1972 through 1976

1шт.

464623R1

WASHER

.656 x 1.50 x .105

1шт.

25

125634C1

SHEET, side LH, built 1977 and since

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 295 Planter Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 x 1-1/4 znd sq-nk crg, 386 planter

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

36

125633C1

SHEET, side RH, built 1977 and since

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex-hd mach

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 295 Planter Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 x 1-1/4 znd sq-nk crg, 386 planter

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

27

128605C1

BAR

SHAFT, sprocket, 6.9 in. long, built 1977 and since

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

28

125530C1

BAR

tightener spring, clip

1шт.

29

125729C1

YOKE

hopper drive, built 1977 and since

1шт.

120396

WASHER

.531 x 1.062 x .74 znd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120236

NUT, 1/2-13 znd hex jam

1шт.

30

125640C1

BUSHING

sprocket, built 1977 and since

1шт.

31

125641C1

HOUSING

sprocket support, bearing, built 1977 and since

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

32

125638C1

SPROCKET ASSY.

SPROCKET, 42 teeth, built 1977 and since

1шт.

33

128640C1

SPROCKET ASSY.

SPROCKET AND AXLE ASSY, 10 tooth, 295 planter, built 1977 and since

1шт.

33

128641C1

SPROCKET AND AXLE ASSY, 10 tooth, 386 planter, built 1977 and since

1шт.

464623R1

WASHER

.656 x 1.50 x .105

1шт.

34

CHAIN, hopper drive, use 85 links from 10 ft roll marked, 475879R91, one connecting link, 1306D and one offset link, 1308D, built 1977 and since

1шт.

35

484192R1

SPACER, 11/16 x 13/16 x 1-5/16, 296 and 386 planters

2шт.

36

56694C1

PLATE, spreader mounting, 296 and 386 planters

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
