Запчасти Case IH DRY (A-179) - DRY FERTILIZERS, GRANULAR CHEMICAL HOPPER, FOR HERBICIDE AND INSECTICIDE

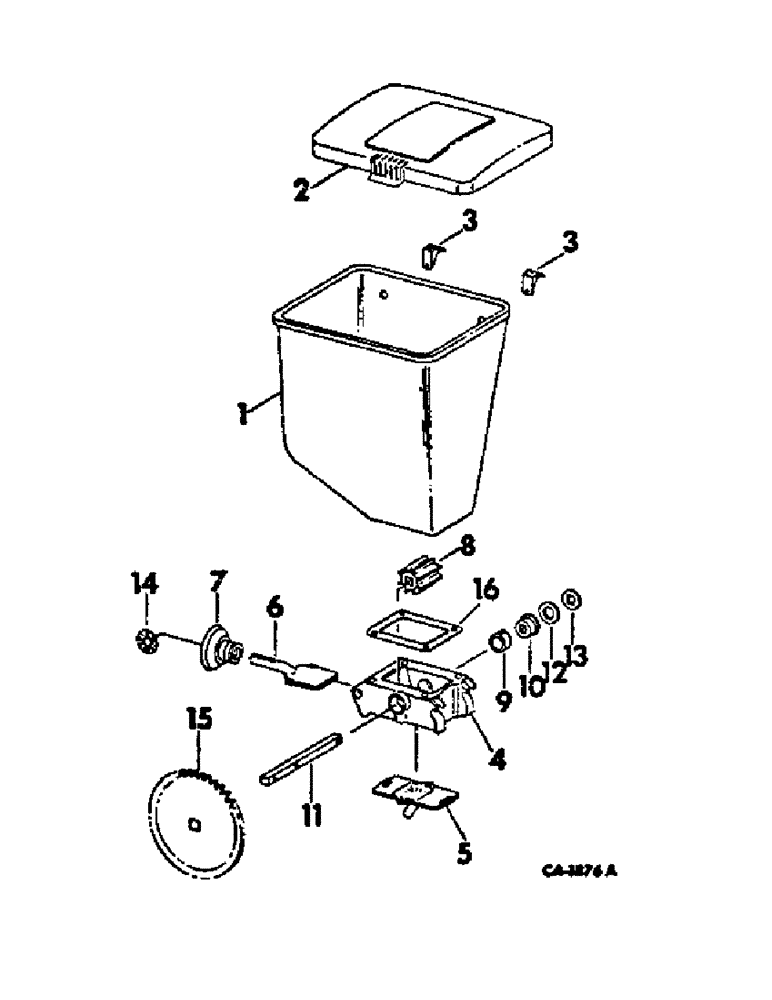

Схема запчастей Case IH DRY - (A-179) - DRY FERTILIZERS, GRANULAR CHEMICAL HOPPER, FOR HERBICIDE AND INSECTICIDE
15
5
8
13
7
14
3
1
4
10
16
12
2
11
3
6
9

Артикул

Название

Примечание

Количество

1

543752R1

HOPPER

25 lb capacity, 295 planter, 1 used for insecticide, 2 used for herbicide and insecticide combination

1шт.

1

543721R2

HOPPER

35 lb capacity, 1 used for herbicide on 295, 296 and 386 planters, 1 used for insecticide on 386 planters, 2 used for herbicide and insecticide combination on 296 and 386 planters

1шт.

2

543722R1

COVER

hopper, 1 per hopper

1шт.

3

543723R1

HINGE

HING, 2 per hopper

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

395-31022

WASHER,#10

13/64 x 15/32 x .036 C-Z

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

4

543190R2

HOUSING

upper, 1 per hopper

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

450629

SCREW, 1/4-20 x 7/8 znd rec-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

4шт.

548505R1

WASHER

hopper

4шт.

5

59151C1

TUBE

FUNNEL, housing, 1 per hopper, will work for 543187R1 when used with clamp, 274085R91

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 C-Z slt-pan-hd tap

6шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .036 C-Z

1шт.

6

543188R1

DEFLECTOR

GAUGE, rate control, 1 per hopper

1шт.

7

543186R1

HANDLE

adjusting, 1 per hopper

1шт.

8

543724R1

ROLL

feeding, 1 per hopper

1шт.

9

543725R1

BUSHING

housing, 2 per hopper

1шт.

10

543726R1

BUSHING,1.001" ID x 1.38" OD x 0.76"

drive shaft, 2 per hopper

1шт.

11

56790C1

SHAFT

sprocket, 1 per hopper, 9.2 in. long, built 1972 through 1976

1шт.

11

128605C1

BAR

SHAFT, sprocket, 1 per hopper, 6.9 in. long, built 1977 and since

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

12

544048R1

SPRING

drive shaft, 2 per hopper

1шт.

13

544049R1

SPRING WASHER

spring, 2 per hopper

1шт.

14

543728R1

DISC

DISK, handle adjusting, 1 per hopper

1шт.

145189

SCREW, 10-16 x 3/8 C-Z slt-pan-hd tap

3шт.

15

539766R2

SPROCKET ASSY.

SPROCKET W/HUB, 42 teeth, 1 per hopper, built 1972 through 1976

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

15

125638C1

SPROCKET ASSY.

SPROCKET, 42 teeth, 1 per hopper, built 1977 and since

1шт.

16

57768C1

GASKET

hopper, 1 per hopper

1шт.

Выбрано товаров: 33
