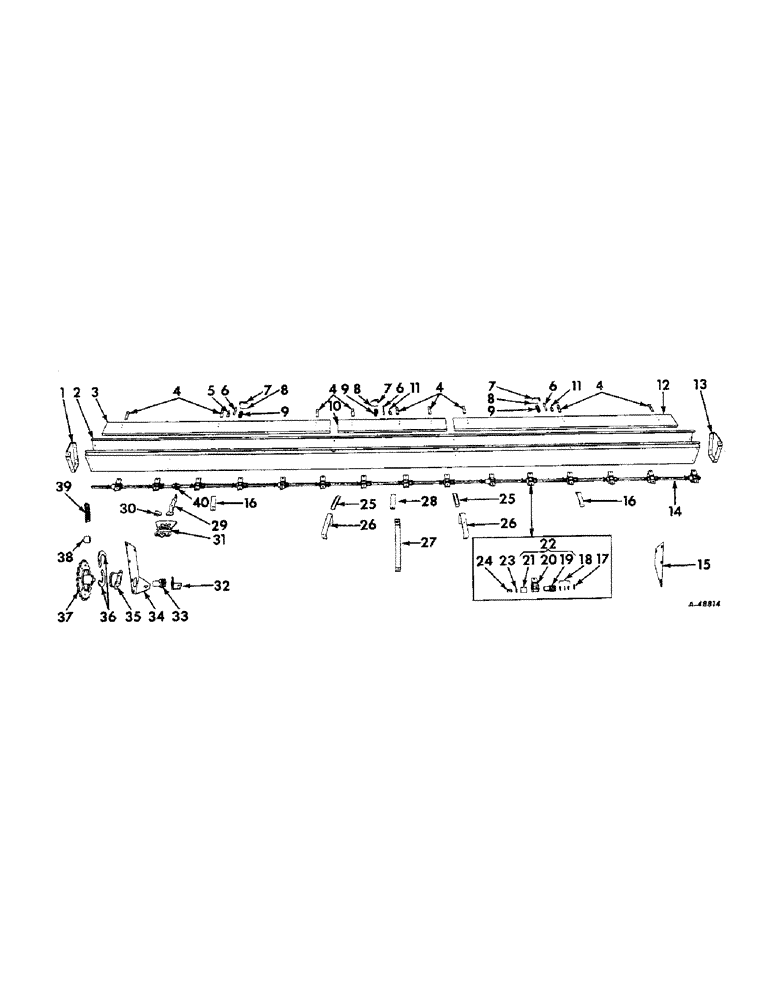

Запчасти Case IH 7 (D-9) - GRASS SEED ATTACHMENTS / PRODUCT GRAPHICS
№
Артикул
Название
Примечание
Количество
625745R91
GRASS SEED ATTACHMENT, 1 used for 8 ft.
1шт.
625708R91
GRASS SEED ATTACHMENT, 1 used for 10 ft.
1шт.
625709R91
GRASS SEED ATTACHMENT, 1 used for 12 ft.
1шт.
1
625711R1
HEAD, hopper right
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex
6шт.
19295R1
NUT
1/4-20NC cd-pltd hex
2шт.
19293R1
SCREW, no. 10-24NC x 3/8 slt-rd-hd cd-pltd mach
6шт.
454802
SCREW, 1/4-20NC x 1/2 slt-rd-hd cd-pltd mach
2шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock
6шт.
19297R1
WASHER, 1/4 cd-pltd lock
2шт.
2
625707R1
HOPPER, 1 used for 12 ft.
1шт.
2
625706R1
HOPPER, 1 used for 10 ft.
1шт.
2
625741R1
HOPPER, 1 used for 8 ft.
1шт.
3
624211R1
LID, right
1шт.
4
N32057
HINGE, lid, 6 used for 8 ft., 9 used for 10 and 12 ft.
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex, 12 used for 8 ft., 18 used for 10 and 12 ft.
1шт.
19293R1
SCREW, no. 10-24NC x 3/8 slt-rd-hd cd-pltd mach, 8 used for 8 ft, 12 used for 10 and 12 ft
1шт.
5
N32150
BRACKET, lid spring, for right lid
1шт.
6
N32052
BAR
PLUNGER, lid spring, 2 used for 8 ft., 3 used for 10 and 12 ft, 3 used for 10 and 12 ft
1шт.
104066
RIVET,But Hd, 3/16" x 9/32"
3/16 x 3/8 B-hd, 4 used for 8 ft, 6 used for 10 and 12 ft
1шт.
N32146
WASHER, 13/64 ID x 7/8 OD x 18 ga, 2 used for 8 ft., 3 used for 10 and 12 ft
1шт.
7
N32151
PIVOT, bracket, 2 used for 8 ft, 3 used for 10 and 12 ft
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex, 2 used for 8 ft, 3 used for 10 and 12 ft
1шт.
134618
ANGLE BAR
SCREW, no. 10-24NC x 1/2 slt-rd-hd cd-pltd mach, 2 used for 8 ft, 3 used for 10 and 12 ft
1шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock, 2 used for 8 ft, 3 used for 10 and 12 ft
1шт.
8
N32114
LINCH PIN
SADDLE, lid spring, 2 used for 8 ft, 3 used for 10 and 12 ft
1шт.
9
6628
SPRING
lid, 2 used for 8 ft, 3 used for 10 and 12 ft
1шт.
10
624217R1
LID, center, 1 used for 10 ft
1шт.
10
624218R1
LID, center, 1 used for 12 ft
1шт.
11
N32056
BRACKET, lid spring, for left and center lid, 1 used for 8 ft, 2 used for 10 and 12 ft
1шт.
12
624210R1
LID, left
1шт.
13
625710R1
HEAD, hopper left
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex
6шт.
19295R1
NUT
1/4-20NC cd-pltd hex
2шт.
19298R1
LOCK WASHER
SCREW, no. 10-24NC x 3/8 slt-rd-hd cd-pltd mach
6шт.
454802
SCREW, 1/4-20NC x 1/2 slt rd-hd cd-pltd mach
2шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock
6шт.
19297R1
WASHER, 1/4 cd-pltd lock
2шт.
14
624206R1
SHAFT, feed, less feed cup and sleeve, 1 used for 8 ft.
1шт.
14
624207R1
SHAFT, feed, less feed cup and sleeve, 1 used for 10 ft.
1шт.
14
624208R1
SHAFT, feed, less feed cup and sleeve, 1 used for 12 ft.
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), , 24 used for 8 ft, 30 used for 10 ft, 36 used for 12 ft 1/8" x 3/4"
1шт.
15
625712R1
BRACKET, hopper left
1шт.
19287R1
BOLT, 3/8-16NC x 3/4 cd-pltd hex-hd
4шт.
280136
NUT,3/8"-16, G8
4шт.
623068R1
WASHER
3/8 cd-pltd lock
4шт.
16
N32054
BRACE, inside hopper
2шт.
19302R1
NUT
no. 10-24NC cd-pltd hex
4шт.
19293R1
SCREW, no. 10-24NC x 3/8 slt-rd-hd cd-pltd mach
4шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock
4шт.
17
N32109
WASHER
11/32 in. special-slt-hole x 7/8 OD x 26 ga plain, 12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
18
615023R1
SQ HOLE WASHER
11/32 sq-hole x 3/4 OD x 26 ga plain, 36 used for 8 ft, 45 used for 10 ft, 54 used for 12 ft
1шт.
19
601463R1
FINGER ASSY.
ROLL, feed, 12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
20
615750R92
SUPPORT ASSY.
CUP ASSY, grass seed feed, 12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
445141
NUT
spring, 24 used for 8 ft, 30 used for 10 ft, 36 used for 12 ft
1шт.
19294R1
SCREW, 1/4-20NC x 3/8 slt-rd-hd cd-pltd mach, 24 used for 8 ft, 30 used for 10 ft, 36 used for 12 ft
1шт.
21
600923R2
BLOCK
THIMBLE, cut-off, 12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
22
600924R92
CUP ASSY.
CUP W/FEED ROLL AND CUT-OFF ASSY, grass seed, 12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
23
Q1578
WASHER, 3/8 sq-hole x 3/4 ID x 16 ga plain, 12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
24
N32176
SPRING
12 used for 8 ft, 15 used for 10 ft, 18 used for 12 ft
1шт.
25
N32063
GUTTER, water, 1 used for 8 ft, 2 used for 10 and 12 ft
1шт.
26
N32055
BRACE, water gutter, 1 used for 8 ft, 2 used for 10 and 12 ft
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex, 3 used for 8 ft, 6 used for 10 and 12 ft
1шт.
19293R1
SCREW, no. 10-24NC x 3/8 slt-rd-hd cd-pltd mach, 3 used for 8 ft, 6 used for 10 and 12 ft
1шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock, 3 used for 8 ft, 6 used for 10 and 12 ft
1шт.
27
625698R1
BRACE, center hopper, 1 used for 10 and 12 ft
1шт.
19288R1
BOLT, 3/8-16NC x 1-1/4 cd-pltd, 1 used for 10 and 12 ft
1шт.
623068R1
WASHER
3/8 cd-pltd lock, 1 used for 10 and 12 ft
1шт.
280136
NUT,3/8"-16, G8
1 used for 10 and 12 ft 3/8"-16, G8
1шт.
28
626697R1
BRACE, center hopper, 1 used for 10 and 12 ft
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex, 2 used for 10 and 12 ft
1шт.
19293R1
SCREW, no. 10-24NC x 3/8 slt-rd-hd cd-pltd mach, 1 used for 10 and 12 ft
1шт.
134618
ANGLE BAR
SCREW, no. 10-24NC x 1/2 slt-rd-hd cd-pltd mach, 1 used for 10 and 12 ft
1шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock, 2 used for 10 and 12 ft
1шт.
29
N1468
INDICATOR
LEVER, indicator
1шт.
19280R1
SCREW,Sq Nk, 1/4" - 20 x 3/4"
BOLT, 1/4-20NC x 3/4 cd-pltd crg
1шт.
19299R1
NUT, 1/4-20NC cd-pltd wing
1шт.
104083
RIVET,But Hd, 1/4" x 3/4"
1/4 x 3/4 b-hd
2шт.
30
F902
BLOCK
pivot
1шт.
31
624222R1
PLATE, indicator
1шт.
19302R1
NUT
no. 10-24NC cd-pltd hex
3шт.
19301R1
SCREW, no. 10-24NC x 1/2 slt-fl hd cd pltd mach
3шт.
19298R1
LOCK WASHER
WASHER, no. 10 cd-pltd lock
3шт.
32
623522R1
FORK, clutch
1шт.
19281R1
BOLT
5/16-18NC x 1 cd-pltd crg
1шт.
19300R1
NUT, 5/16-18NC cd-pltd wing
1шт.
625764R1
WASHER, 11/32 ID x 11/16 OD x 1 6 ga cd-pltd plain
1шт.
33
623528R1
CLUTCH, drive
1шт.
34
625713R1
BRACKET, hopper right
1шт.
19287R1
BOLT, 3/8-16NC x 3/4 cd-pltd hex-hd
4шт.
280136
NUT,3/8"-16, G8
4шт.
623068R1
WASHER
cd-pltd lock
4шт.
35
623532R1
BEARING, feed shaft
1шт.
19286R1
BOLT, 5/16-18NC x 3/4 cd-pltd hex-hd
2шт.
19296R1
NUT,5/16"-18, G5
5/16-18NC cd-pltd hex
2шт.
623083R1
WASHER
5/16 cd-pltd lock
2шт.
36
623521R1
RETAINER, sprocket, half
2шт.
104056
RIVET
1/8 x 7/8 B-hd
4шт.
37
625696R11
SPROCKET W/FITTING, 21 tooth drive
1шт.
443567
LUBE NIPPLE,1/4" x .56 lg, Drive
FITTING, 1/4 straight drive type lub
1шт.
38
625695R1
TIGHTENER, chain
1шт.
19363R1
BOLT, 5/16-18NC x 1-1/2 cd-pltd crg
1шт.
19296R1
NUT,5/16"-18, G5
NUB, 5/16-18NC cd-pltd hex
1шт.
623083R1
WASHER
5/16 cd-pltd lock
1шт.
Q397
WASHER
11/32 ID x 3/4 OD x 16 ga plain
1шт.
39
625747R91
CHAIN, drive, no. 25 steel, 39 links
1шт.
40
FA394
SLEEVE
feed shaft
1шт.
104056
RIVET
1/8 x 7/8 B-hd
1шт.
547494R92
DECAL
PACKAGE, IH trademark product graphics
1шт.
547495R92
DECAL KIT
PACKAGE, international name product graphics
1шт.
547497R92
DECAL
PACKAGE, model designation product graphics
1шт.
Выбрано товаров: 111
