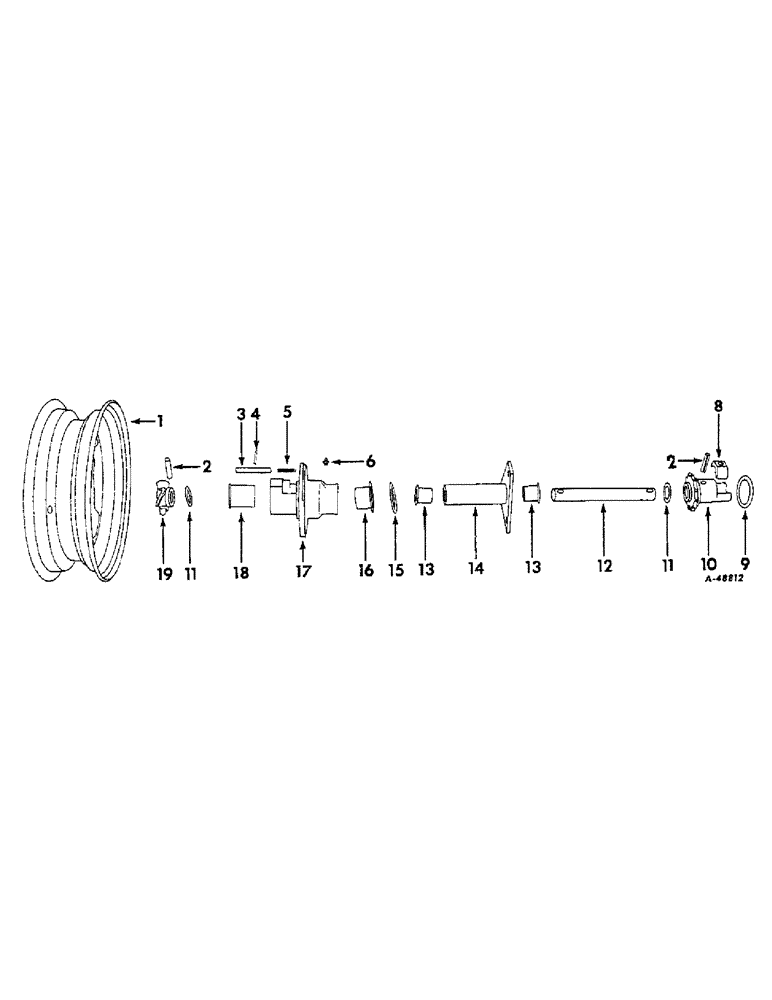

Запчасти Case IH 7 (D-5) - WHEEL AND DRIVE PARTS

1

463036R1

WHEEL (STEERING)

WHEEL, for 14 in. pneumatic tire

2шт.

1

4551699R2

WHEEL, for 15 in. pneumatic tire

2шт.

1

624332R91

WHEEL, for 20 in. pneumatic tire

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20UNF x 13/16, special

8шт.

2

19276R1

PIN, 1/2 x 2-3/8 roll

4шт.

3

625603R1

PIN, wheel drive

2шт.

4

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

2шт.

5

41058DA

SPRING

wheel drive pin

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lub

2шт.

7

(Not used in this application)

1шт.

8

CAP, sprocket, order 625594R1, sprocket

2шт.

9

625689R1

WASHER, 2-1/2 ID x 3-1/4 OD x 16 ga, plain

1шт.

10

625594R11

SPROCKET W/CAP, 12 tooth drive

2шт.

12291R1

BOLT, 1/2-13NC x 2-3/4 cd-pltd hex-hd

2шт.

453285

NUT

1/2-13NC cd-pltd hex

2шт.

651231R1

WASHER

1/2 cd-pltd lock

2шт.

11

625690R1

WASHER

WASHER, 1-9/32 x 1-31/32 OD x 22 ga, plain

1шт.

12

625604R1

EXTENSION, feed shaft

2шт.

13

625658R1

BUSHING

skein

4шт.

14

625674R91

SKEIN

2шт.

19292R1

BOLT, 5/8-11NC x 1-1/4 cd-pltd hex-hd

6шт.

651232R1

WASHER, 5/8 cd-pltd lock

6шт.

15

Q366

WASHER

2-1/16 ID x 2-15/16 OD x 16 ga

1шт.

16

625656R1

BUSHING

hub inner

2шт.

17

625586R1

HUB, wheel

2шт.

18

625657R1

BUSHING

hub outer

2шт.

19

625592R1

DRIVER, left feed shaft

1шт.

19

625593R1

DRIVER, right feed shaft

1шт.

625721R91

FEED SHUT-OFF, special, package of 4

1шт.

625720R91

FEED SHUT-OFF, special, package of 10

1шт.
