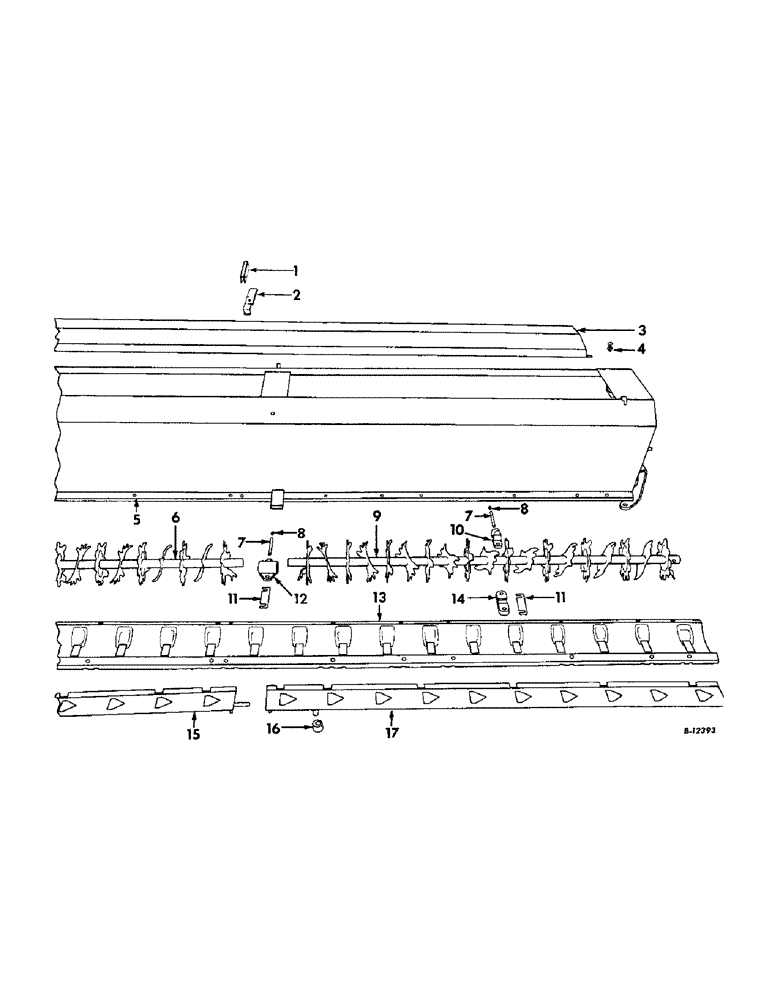

Запчасти Case IH 7 (D-3) - HOPPER, HOPPER BOTTOM AND FEED SHAFT

1

625589R1

LATCH, cover, 1956 to 1960, 1 used for 8 and 10 ft., 2 used for 12 ft.

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, , 1 used for 8 and 10 ft. , 2 used for 12 ft. 3/16" x 7/8", Slotted

1шт.

1

464213R1

HANDLE, latch, 1960 and since, 1 used for 8 and 10 ft., 2 used for 12 ft.

1шт.

137316

RIVET, 3/16 x 1 tubular, 1 used for 8 and 10 ft., 2 used for 12 ft.

1шт.

2

464212R1

SPRING, latch, 1960 and since, 1 used for 8 and 10 ft., 2 used for 12 ft.

1шт.

3

625672R91

LID ASSY, 1 used for 10 ft.

1шт.

3

625673R91

LID ASSY, 2 used for 12 ft.

1шт.

3

625736R91

LID ASSY, 1 used for 8 ft.

1шт.

4

625667R91

STOP, lid, 2 used for 8 and 10 ft., 4 used for 12 ft.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), , 2 used for 8 and 10 ft; 4 used for 12 ft. 1/8" x 5/8"

1шт.

Q1597

WASHER

13/32 ID x 3/4 OD x 16 ga plain, 2 used for 8 and 10 ft., 4 used for 12 ft.

1шт.

5

625683R91

HOPPER, 1 used for 12 ft.

1шт.

5

625684R91

HOPPER, 1 used for 10 ft.

1шт.

5

625740R91

HOPPER, 1 used for 8 ft.

1шт.

6

625680R91

SHAFT, right feed, 1 used for 12 ft.

1шт.

6

625682R91

SHAFT, right feed, 1 used for 10 ft.

1шт.

6

625735R91

SHAFT, right feed, 1 used for 8 ft.

1шт.

7

625651R1

PIPE, lubrication, 1 used for 8 and 10 ft., 3 used for 12 ft.

1шт.

8

109368

FITTING, 5/16 straight lub, 1 used for 8 and 10 ft., 3 used for 12 ft.

1шт.

9

625679R91

SHAFT, left feed, 1 used for 12 ft.

1шт.

9

625681R91

SHAFT, left feed, 1 used for 10 ft.

1шт.

9

625734R91

SHAFT, left feed, 1 used for 8 ft.

1шт.

10

BEARING, upper half intermediate, order 626084R92, bearing, 2 used for 12 ft.

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13NC x 1-3/4 cd-pltd hex-hd, 4 used for 12 ft.

1шт.

651231R1

WASHER

1/2 cd-pltd lock, 4 used for 12 ft.

1шт.

11

625664R1

SHIM, no. 16 ga

1шт.

11

625663R1

SHIM, no. 22 ga

1шт.

11

625662R1

SHIM, no. 28 ga

1шт.

12

625588R1

BEARING, center

10шт.

623086R1

BOLT, 1/2-13NC x 1-1/2 cd-pltd hex-hd

2шт.

651231R1

WASHER

1/2 cd-pltd lock

2шт.

13

625677R91

BOTTOM, 1 used for 10 ft.

1шт.

13

625678R91

BOTTOM, 1 used for 12 ft.

1шт.

13

625737R91

BOTTOM, 1 used for 8 ft.

1шт.

19289R1

BOLT, 1/2-13NC x 3/4 cd-pltd hex-hd, 16 used for 8 and 10 ft., 20 used for 12 ft.

1шт.

651231R1

WASHER

1/2 cd-pltd lock, 16 used for 8 and 10 ft., 20 used for 12 ft.

1шт.

14

626084R91

BEARING, upper and lower halves intermediate pair, 2 used for 12 ft.

1шт.

15

625669R91

SLIDE, right, 1 used for 12 ft.

1шт.

15

625671R91

SLIDE, right, 1 used for 10 ft.

1шт.

15

625739R91

SLIDE, right, 1 used for 8 ft.

1шт.

453285

NUT

1/2-13NC cd-pltd hex

2шт.

16

625600R1

CAM, slide adjusting

1шт.

19361R1

NUT, 5/8-11NC cd-pltd hex

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 internal-tooth cd-pltd lock

1шт.

17

625668R91

SLIDE, left, 1 used for 12 ft.

1шт.

17

625670R91

SLIDE, left, 1 used for 10 ft.

1шт.

17

625738R91

SLIDE, left, 1 used for 8 ft.

1шт.

411870R1

SEALER, lid

1шт.
