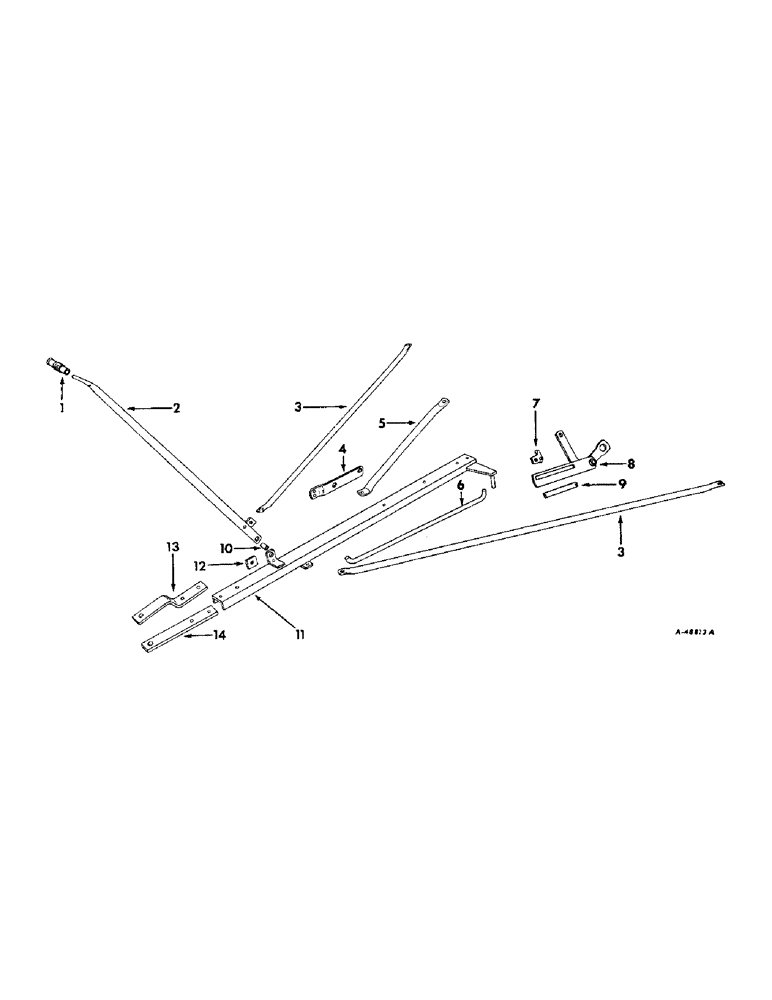

Запчасти Case IH 7 (D-2) - HITCH POLE AND BRACES, AND QUANTITY LEVER

1

459386R1

GRIP, handle

1шт.

2

625627R1

LEVER, Serial Range: 1956-1960

1шт.

2

625627R11

LEVER, 1960 and since

1шт.

3

625649R1

BRACE, hitch, 2 for 12 ft.

1шт.

3

625650R1

BRACE, hitch, 2 for 10 ft.

1шт.

3

625733R1

BRACE, hitch, 2 for 8 ft.

1шт.

623075R1

BOLT, 1/2-13NC x 1-1/4 cd-pltd hex hd

4шт.

453285

NUT

1/2-13NC cd-pltd hex

4шт.

651231R1

WASHER

1/2 cd-pltd lock

4шт.

4

625619R1

EXTENSION, lever

1шт.

623086R1

BOLT, 1/2-13NC x 1-1/2 cd-pltd hex hd

1шт.

453285

NUT

1/2-13NC cd-pltd hex

1шт.

651231R1

WASHER

1/2 cd-pltd lock

1шт.

5

625648R1

BRACE, Serial Range: hopper-pole

2шт.

623075R1

BOLT, 1/2-13NC x 1-1/4 cd-pltd hex-hd

2шт.

453285

NUT

1/2-13 NC cd-pltd hex

2шт.

651231R1

WASHER

1/2-13NC cd-pltd lock

2шт.

6

625596R1

LINK, lever connecting, Serial Range: 1956-1960

1шт.

6

464211R1

LINK, lever connecting, 1960 and since

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

7

625587R1

INDICATOR AND STOP

1шт.

19285R1

BOLT

1/2-13NC x 1-1/4 cd-pltd crg.

1шт.

623090R1

NUT, 1/2-13NC cd-pltd wing

1шт.

8

626081R91

BELLCRANK

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

9

625655R1

CHART, indicator

1шт.

220349

SCREW, no. 6 x 1/4 blunt drive

2шт.

10

625653R1

BUSHING, lever

1шт.

623076R1

BOLT, 5/8-11NC x 2 cd-pltd hex-hd

1шт.

9413948

NUT,5/8"-11, GA

5/8-11NC cd-pltd hex lock

1шт.

551177R1

WASHER

21/32 ID x 1-1/4 OD x 16 ga plain

2шт.

11

464210R91

POLE, hitch, 1960 and since

1шт.

11

626080R91

POLE, hitch, Serial Range: 1956-1960

1шт.

12

464622R1

BLOCK, pacer, 1960 and since

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16NC x 1-1/4 cd-pltd hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

623075R1

BOLT, 1/2-13NC x 1-1/4 cd-pltd hex-hd

2шт.

453285

NUT

1/2-13NC cd-pltd hex

2шт.

651231R1

WASHER

1/2 cd-pltd lock

2шт.

13

625123R1

CLEVIS, offset hitch

1шт.

14

625122R1

CLEVIS, straight hitch

1шт.

19290R1

BOLT, 1/2-13NC x 2 cd-pltd hex-hd

2шт.

453285

NUT

1/2-13NC cd-pltd hex

2шт.

651231R1

WASHER

1/2 cd-pltd lock

2шт.
