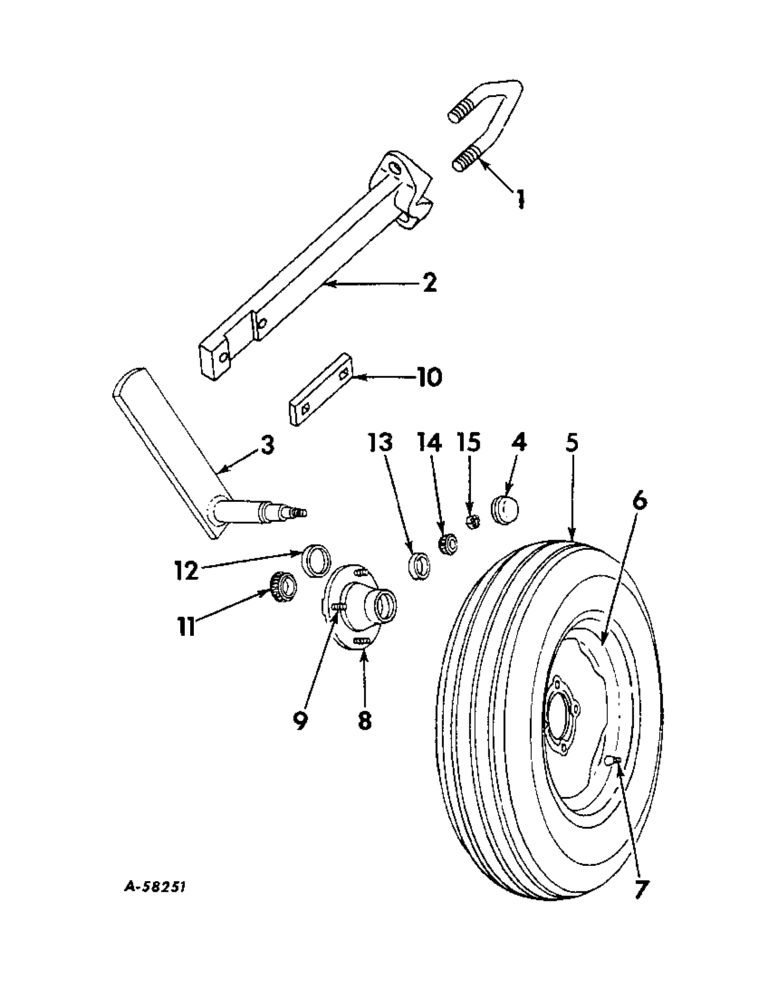

Запчасти Case IH 623 (AJ-04) - GAUGE WHEEL

1

478242R1

U-BOLT, attaching nut, 3/4 in. washer, 3/4 in. lock

2шт.

2

527081R1

ARM

guage wheel

1шт.

3

527079R11

STANDARD, guage wheel, Serial Range: 1959-1961

1шт.

.

PIN, 5/32 x 1-1/4 in. cotter

1шт.

.

WASHER, 5/8 x 1-3/8 x .109 in.

1шт.

3

467470R91

STANDARD, guage wheel, 1961 and since

1шт.

.

PIN, 1/8 x 1-1/4 in. cotter

1шт.

.

575813R1

WASHER

25/32 x 1-1/4 in. x 11 ga

1шт.

4

651194R1

CAP

hub

1шт.

5

TIRE, ribbed implement pneumatic, 6.70 x 15 in.

1шт.

6

455169R92

WHEEL

RIM, 15 in. x 5.00 wheel

1шт.

7

TUBE, pneumatic, 6.70 x 15 in.

1шт.

8

465870R21

HUB

W/BOLTS, cups and nuts, 1961 and since

1шт.

8

652381R91

HUB

W/BOLTS, cups and nuts, 1959 and 1961

1шт.

9

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2UNF x 1-5/8 in. special, 1961 and since

4шт.

9

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, 1/2UNF x 1-1/2 in. special, Serial Range: 1959-1961

4шт.

.

453770R1

WHEEL NUT

1/2UNF conical

4шт.

10

527082R1

CLIP

standard clamp

1шт.

.

BOLT, 5/8 x 2-3/4 in. crg

2шт.

.

NUT, 5/8 in.

2шт.

.

WASHER, 5/8 in. lock

2шт.

11

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

CONE W/SEAL AND CUP, roller bearing

1шт.

12

651817R1

BEARING CUP

CUP, inner roller bearing, order 602957R91

1шт.

13

651814R1

BEARING CUP

CUP, outer roller bearing

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer roller bearing

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

15

102649

SLOTTED NUT,5/8"-18, G5

NUT, , 1959 to 1961 5/8"-18, G5

1шт.

15

69442D

NUT

3/4-UNF slt jam, 1961 and since

1шт.
