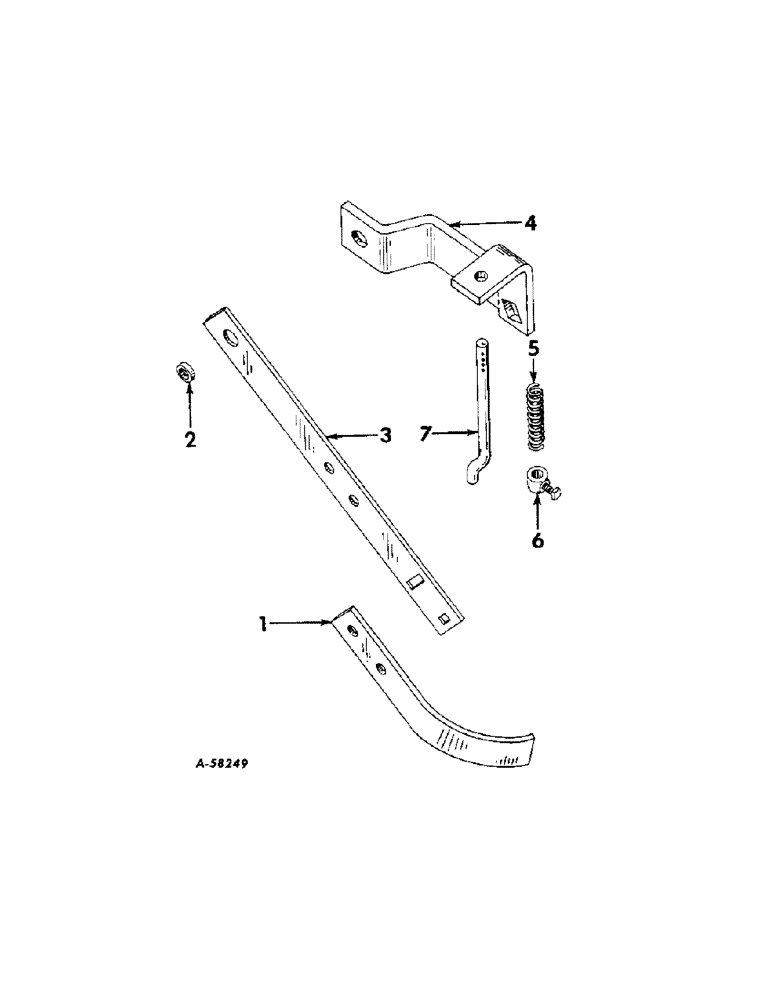

Запчасти Case IH 623 (AJ-08) - COVERING BLADE

1

621582R1

SUPPORT

BLADE, left covering

1шт.

1

621583R1

BLADE

right covering

1шт.

BOLT, 5/16 x 3/4 in. crg

4шт.

NUT, 5/16 in.

4шт.

WASHER, 5/16 in. lock

4шт.

2

461804R1

BUSHING, pivot

1шт.

3

526250R1

BAR

ARM, covering blade

1шт.

BOLT, 1/2 x 1 in. hex-hd mach

1шт.

NUT, 1/2 in.

1шт.

WASHER, 1/2 in. lock

1шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

1шт.

4

527085R91

BRACKET, left covering blade

1шт.

4

527086R91

BRACKET, right covering blade

1шт.

5

127

SPRING, pressure, 17 coils

1шт.

6

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

1шт.

7

527097R1

ROD, pressure

1шт.

PIN, 3/32 x 3/4 in. cotter

1шт.
