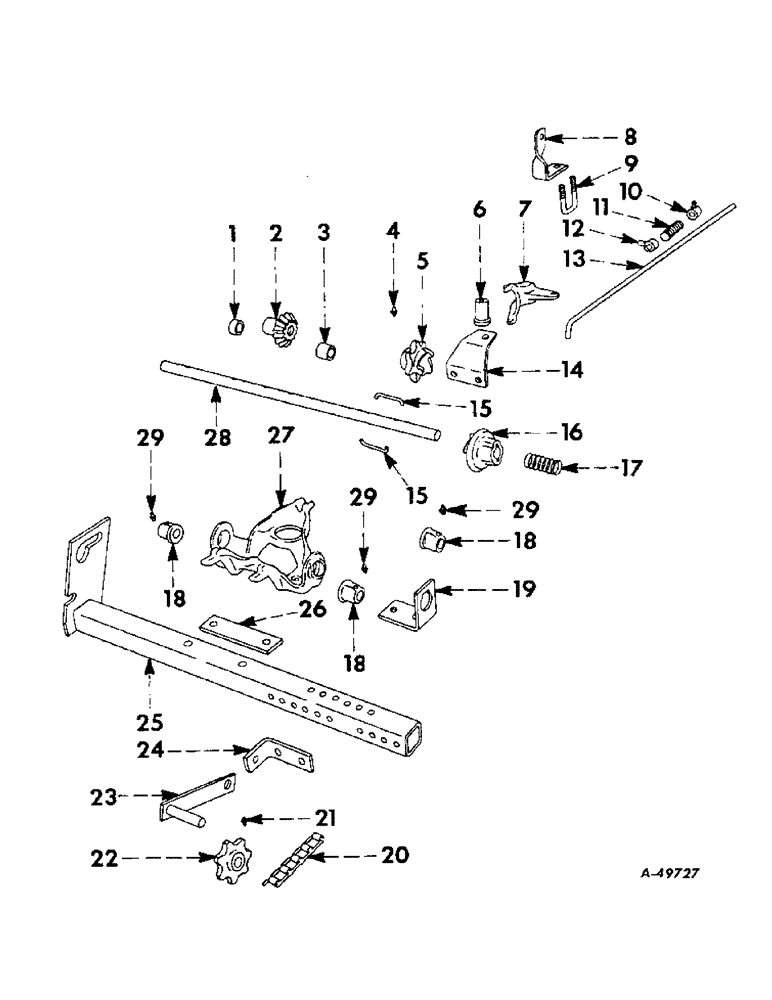

Запчасти Case IH 617 (V-07) - HOPPER SUPPORT AND DRIVE

1

PO10780

SPACER,3/4" Pipe x 7/16"

3/4 x 7/16 in. pipe, between pinion and bearing

1шт.

2

513998R1

PINION

13 tooth drive

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

3

PO17652

SPACER, 3/4 x 3/4 in. pipe, between cotter and bearing

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

PO1933A

CLUTCH

left drive

1шт.

5

PO2097A

CLUTCH

right drive

1шт.

6

PO1801

PIVOT, throw-out yoke

1шт.

7

PO2099

YOKE, clutch throw-out

1шт.

BOLT, 3/8 x 2-1/2 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

8

523580R2

BRACKET, throw-out rod

1шт.

9

512357R11

U-BOLT W/NUTS, throw-out bracket

1шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

1шт.

10

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, throw-out rod

1шт.

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

1шт.

11

11100D

SPRING

throw-out rod

1шт.

12

PO2437

PIVOT

SWIVEL, throw-out rod

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

13

524948R1

ROD, throw-out

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

512353R1

PIN, quick-attachable cotter

1шт.

14

524931R1

PIVOT, throw-out yoke left

1шт.

14

524932R1

PIVOT, throw-out yoke right

1шт.

15

PO23196

KEY

feed shaft

1шт.

16

512162R1

SPROCKET ASSY.

SPROCKET, clutch left, 7T

1шт.

16

512161R1

SPROCKET ASSY.

SPROCKET, clutch right, 7T

1шт.

17

PO125

SPRING

clutch

1шт.

18

PO2507

BEARING

feed shaft

1шт.

19

524933R1

BRACKET, feed shaft bearing

1шт.

BOLT, 3/8 x 2-1/4 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

20

CHAIN, main drive, use 110 no. 32 steel links from 10 ft roll no. CS-32

1шт.

21

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

22

PO3089

DRIVE SPROCKET

SPROCKET, 7 tooth idler

1шт.

23

518397R91

LEVER

ARM, chain tightener

1шт.

BOLT, 1/2 x 1-1/4 in. mach

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

WASHER, 1/2 in. lock

1шт.

24

524930R1

BRACKET, chain tightener

1шт.

BOLT, 3/8 x 2-3/4 in. mach

2шт.

WASHER, 3/8 in. lock

2шт.

25

524939R91

FRAME, left upper hopper mounting

1шт.

25

524940R91

FRAME, right hopper mounting

1шт.

26

524929R1

PLATE, spacer

1шт.

27

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 3-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

28

524926R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

7шт.

29

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.
